3' E46 330Ci Gearbox mounting

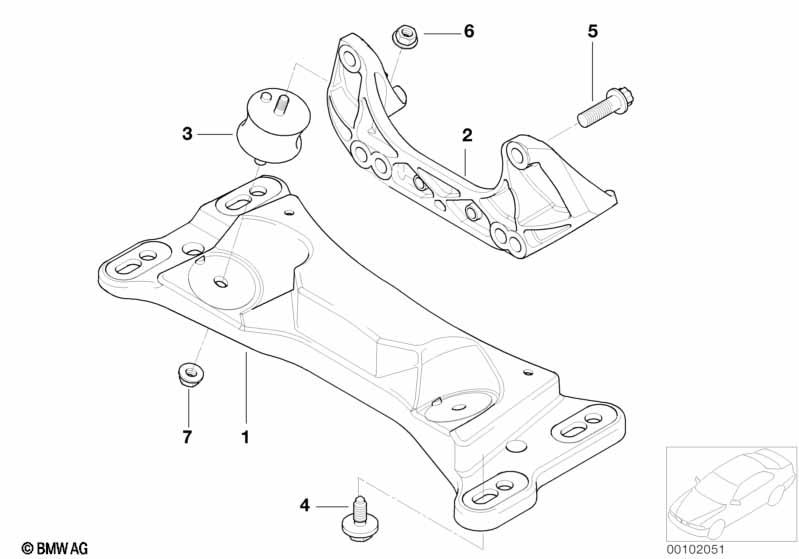

Gearbox mounting
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Gearbox support 1 03/2003 22316769911 $37.21
01 Gearbox support 1 03/2003 22316760531 $38.87
02 Adapter f gearbox cross member 1 03/2003 22316760532 $22.03
03 Transmission bearing set 2 22316799331 +core
04 Hex bolt with washer M8X22-8.8-ZNS3 4 22326760945 $1.08
05 ASA-Bolt M10X35 ZNNIV SI 4 03/2003 04/2005 07129905738
06 Hex nut with plate M8 2 22316760944 $0.38
07 Hex nut with plate M8-ZNS3 2 07129904862 $1.12
Notes
  • +core = plus core charge (possibility of a return of the old part)
