Z3 E36 Z3 3.0i Lifting roof

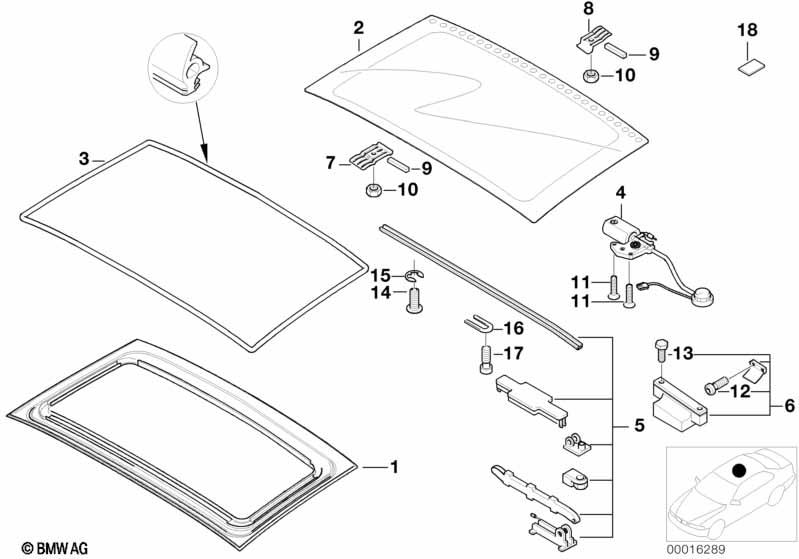

Lifting roof
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Lifting roof frame, complete 1 54108410692 $890.58 +core
02 Glass cover VENUSGRÜN 1 54108410690 $461.26 +core
03 Gasket, lifting roof frame 1 54108411998 $41.95 +core
04 drive unit, tilting sunroof 1 54108401420 $316.19 +core
05 Set cover kinematics 1 54108410693 $223.89 +core
06 Set cover mountings 1 54108410691 $48.84 +core
10 Hex nut M5-8-ZN SW 8 01/1997 07119922829 $0.68 ENDED
10 Nut M5-A2-70 SW 8 07119903070 $1.28
11 Torx-countersunk head screw ISA M5X25 2 54108412851 $0.93
12 Torx bolt M5X8 4 54108411996 $4.12
13 Hex bolt M5X15 4 54108411997 $3.74
14 Pin 4X13 2 54108412000 $4.12
15 Secuirng element 2 54108412001 $4.12
16 Shim 1.0MM X 54318398821 $1.95
17 Torx bolt M5X8 4 54108411996 $4.12
18 Felt strip 40X70X0,8MM X 06/2002 65771377052 $0.47 ENDED
18 Set felt strip self-adhesive X 06/2002 51452353024
18 Set of felt strips SET X 06/2002 52207276398 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
