Z3 E36 Z3 M Covering Lower

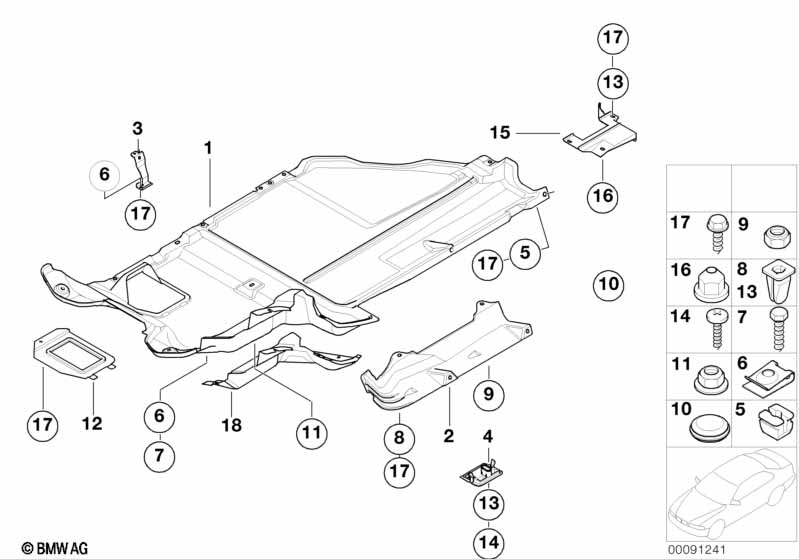

Covering Lower
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Underfloor coating center 1 51712495551 $115.06
only in conjunction with
-- Cover 1 51718268897 $5.73
03 Bracket center 1 51712491061 $7.46
04 Support lifting platform 4 08/1997 51718398169 $13.42
04 Support lifting platform 4 08/1997 51718407559 $13.42
05 Plug-in nut X 51718242741 $0.32
06 Body nut ST4,8-9-ZNS3 2 07129904150 $0.25
07 Hex head screw ST6,3X22-C-Z2 2 07119916971 $0.30
08 Plug-in nut 5 51718242741 $0.32
08 Expanding nut ST 4.8 WEISS X 63171367868 $0.60
08 Expanding nut L=15MM, DMAX=12 X 07146976114 $0.09
09 Plastic nut M6 3 16131176747 $0.53
10 Cap D=62 1 51718398551 $4.53
11 Hex nut with plate AM6-8-ZNNIV SI 2 07129904553 $0.64
11 Plastic nut 1 51711958025 $0.26
12 Cover 1 51718268897 $5.73
13 Expanding nut ST 4.8 WEISS 8 63171367868 $0.60
14 Combi. fillister head self-tapping screw ST4, 8X16MM 8 51419143799 $0.22
15 Air duct, left 1 51718398827 $17.35
15 Air duct, right 1 51718398828 $17.35
16 Cap nut M5 6 51711934930 $0.23
17 Hex head screw ST 4,8X18 SW8 X 07147129161 $0.25
18 Trim panel left 1 51712489803 $32.73
