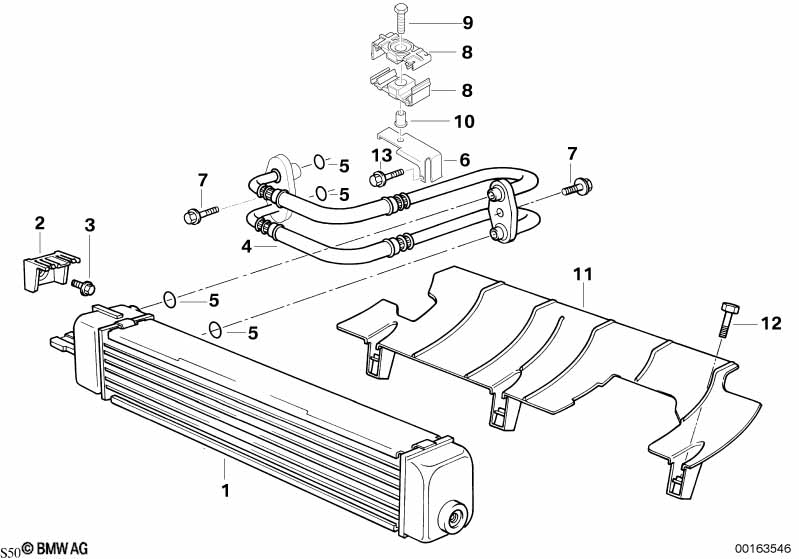

Z3 E36 Z3 M Engine oil cooling

Engine oil cooling
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil cooler A=484MM 1 17212244084 $426.82
02 Bracket oil cooler mounting 1 17512243659 $4.12
03 Hex bolt M6X20-Z4 1 11652243770 $1.07 ENDED
04 Oil cooling pipe 1 17212227235 $178.23 +core
05 O-ring 13,4X1,78 4 17222245358 $1.18
06 Bracket oil pipe 1 17222227282 $7.20
07 Fillister-head screw M8X28 2 17227833189 $3.25
08 Bracket oil pipe 2 17201712209 $3.52
09 Hex bolt with washer M6X30-U2-ZNS3 1 07119903994 $0.65
10 Spacer sleeve D6 1 17227798686 $3.32
11 Air duct 1 17212228449 $23.25 +core
12 Hex head screw ST4,8X30-C-Z2 3 07119900409 $0.47
13 Hex bolt with washer M6X10-Z1 1 07119915041 $0.25
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
