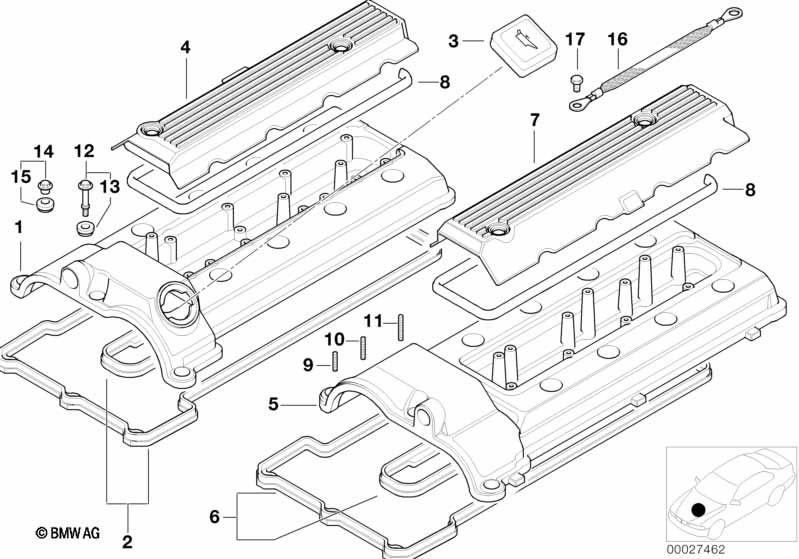

5' E39 M5 Cylinder head cover

Cylinder head cover
No. Description Supp. Qty  From   Up To  Part Number Price Notes
ONLY APPLIES TO CYLINDER 1-4
01 Rocker box cover right 1 11121406776 $760.26 +core
02 Profile-gasket ZYL.1-4 1 11120001269 $43.57
03 Cap for oil filler 1 11127509328 $7.78
04 Covering right 1 11121406033 $159.42 +core
ONLY APPLIES TO CYLINDER 5-8
05 Rocker box cover left 1 11121406779 $760.26 +core
06 Profile-gasket ZYL.5-8 1 11120001278 $43.57
07 Covering left 1 11121406035 $159.42 +core
08 Profile-gasket 2 11121406744 $53.11
09 Stud bolt M6X25-ZN 2 07129908100 $0.20
10 Stud bolt M6X30-ZNNIV SI 2 07129904544 $1.42
11 Stud bolt M6X35-ZN 18 07129908103 $0.25
12 Collar screw 6 11121406175 $3.27
13 Rubber seal 6 11121721879 $1.20
14 Cap nut M6 20 11121747162 $3.10
15 Rubber seal 20 11121437395 $1.17
16 Earth strap 2 11121736201 $5.78
17 Hex bolt with washer M6X14-U1-8.8 2 07119905525 $0.47
Notes
  • +core = plus core charge (possibility of a return of the old part)
