5' E39 530d Vacum control-engine-turbo charger

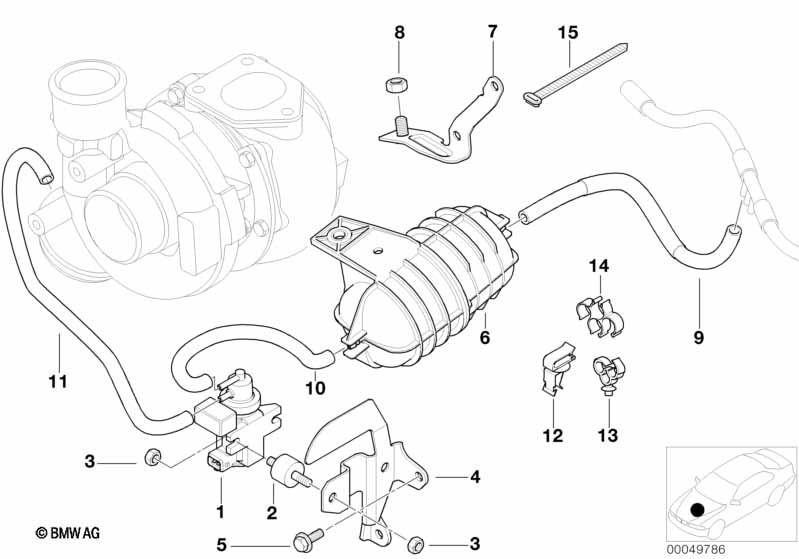

Vacum control-engine-turbo charger
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pressure converter 1 11747796634 $128.76
02 Rubber Mounting 2 11652247721 $8.12
03 Hex nut BM6-8-ZNNIV SI 4 07129905411 $0.38
04 Holder 1 11657786241
05 Hex bolt with washer M6X14-U1-8.8 2 07119905525 $0.47
06 Vacuum tank 1 11652247620 $29.33
07 Bracket, vacuum reservoir 1 11652248118
08 Self-locking collar nut M8-8 ZNS3 1 31316769731 $0.38
09 Vacuum hose black 3,5X2,0 1 11747797129 $17.14
10 Vacuum hose black 3,5X1,8 X 11727545323 $14.82
11 Vacuum hose blue 3,5X2,0 X 11657796879 $16.43
12 Cable holder 1 24507557220 $1.88
13 Wire holder, two-place 1 61138380213 $0.35
14 Hose clamp 1 11747807134 $1.00
15 Cable tie L=292MM/B=4,8MM 1 61131377134 $0.77
