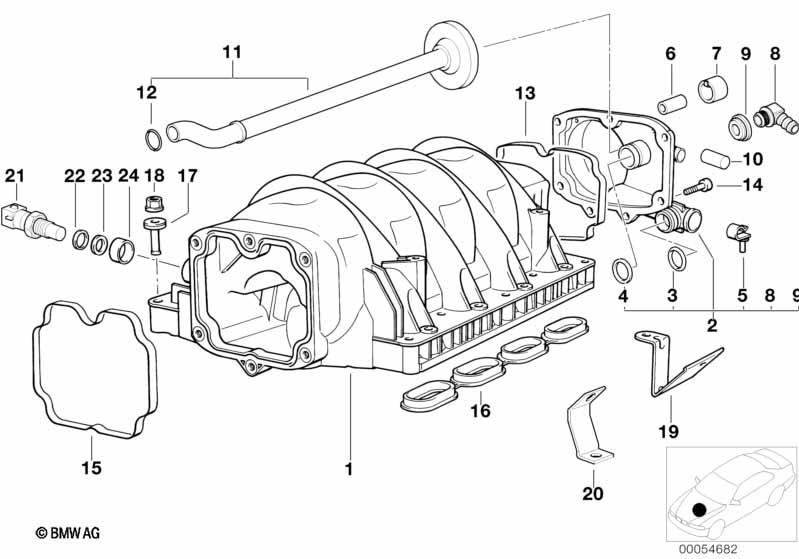

8' E31 840Ci Intake manifold system

Intake manifold system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake manifold 1 11611729528 $615.48 +core
02 Cover 1 11617501563 $78.84
03 O-ring 20,0X3,55 1 11151736140 $2.10
04 Profile-gasket 1 11151702291 $3.46
05 Holder 1 11611704805 $1.28
06 Cap D=5,0MM 1 11611437694 $3.39
07 Supporting ring 1 11611437456 $1.12
08 Connector 1 11611741735 $11.03
09 Blind plug 1 11611704792 $9.56
10 Cap D=10,5 1 11611747085 $5.09
11 Vent pipe 1 11611742826 $30.86
12 O-ring 12,5X2,0MM 1 11611745195 $1.19
13 Profile-gasket 1 11611729728 $7.54
14 Screw M6X25 7 11141460752 $0.60
15 Profile-gasket 1 11611729727 $7.54
16 Profile-gasket 4 11611433328 $27.37
17 Spacer X 11611736648 $3.54
18 Hex nut with plate AM7 ZNNIV SI X 07129905541 $0.64
19 Holder 1 11611747993 $5.52 ENDED
20 Bracket f Bowden cable 1 11611742931 $5.52 ENDED
21 Intake air temperature sensor 1 13621730035 $71.05
22 Gasket ring A12X17-AL 1 07119963150 $0.09
23 Shim 12X2,5-ZNS3 1 05/2018 26111225404 $0.43
23 Shim 12X2,5-ZNS3 1 26112463728
24 Profile-gasket 1 11611736013 $1.52
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
