8' E31 840Ci Single components for headlight

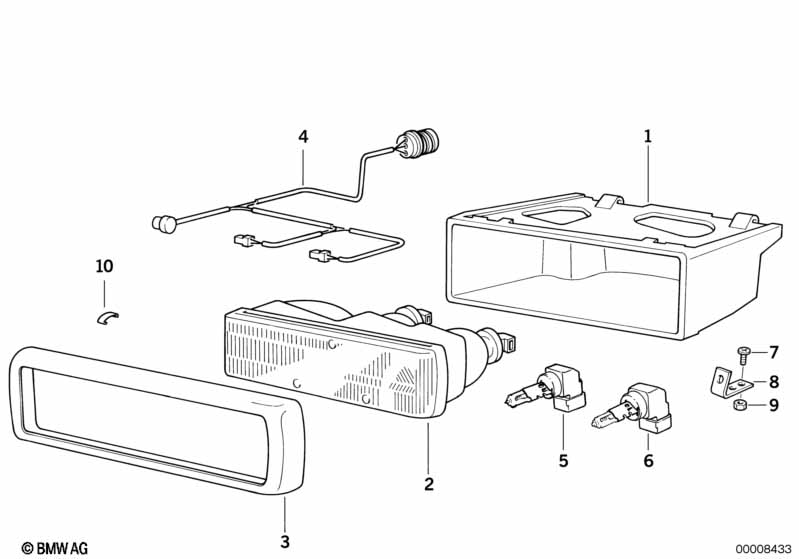

Single components for headlight
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Housing LINKS 1 06/1992 63128354543 $181.63
01 Housing right 1 06/1992 63128354544 $181.63
02 Lamp insert left 1 63121383917 $454.30
02 Lamp insert right 1 63121383918 $454.30
03 Covering front left 1 06/1992 63128354545 $45.17
03 Covering front right 1 06/1992 63128354546 $45.17
04 Wiring head light 2 63128354547 $190.70
05 Bulb HB3 12V 60W 2 63217160785 $18.86
06 Low beam and/or fog lightbulb HB4 12V 51W 4 02/2003 63121382496 $14.74 ENDED
06 Low beam and/or fog lightbulb HB4 12V 51W 4 12/2004 63216926916 $14.92 ENDED
06 Low beam and/or fog lightbulb HB4 12V 55W 4 63217160786 $18.86
07 Fillister head screw M5X16 4 07119906415 $0.16
08 Bracket for headlight cover 2 63128354212 $5.85
09 Hex nut M5 4 07119922038 $0.09
10 Headlight clip X 63121392068 $4.82
Notes
  • ENDED = the part has been discontinued (no longer available).
