X5 E53 X5 3.0i Center muffler

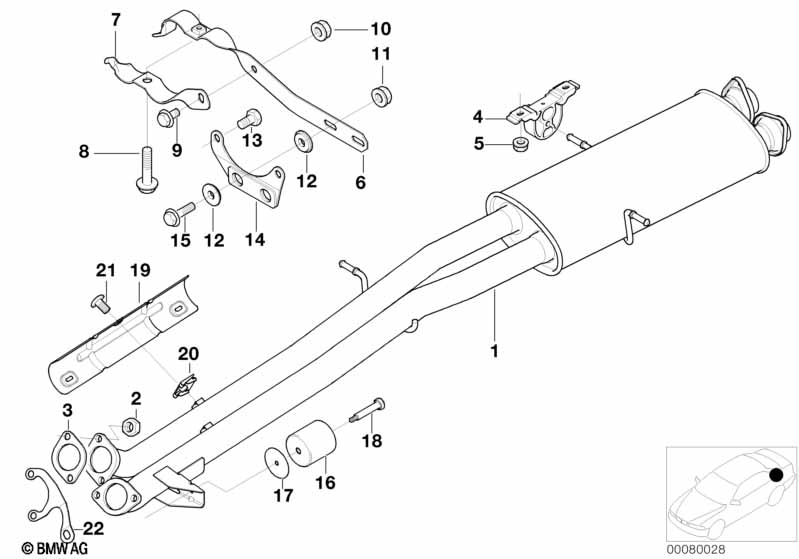

Center muffler
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Center muffler 1 18307502201 $472.58
02 Hex nut M10 4 18301737774 $1.65
03 Flat gasket 2 18107502346 $11.93
04 Rubber Mounting 3 18201438435 $32.62
05 Collar nut M8-8-SC-ZNNIV 6 07119906089 $0.32
06 Exhaust support 1 10/2003 18317502867 $17.63
06 Exhaust support 1 10/2003 18207526887 $11.66
07 Clamp 1 18317502869 $7.47
08 Hex screw with collar M8X40 1 18207502237 $2.90
09 Hex bolt with washer M8X18-U1-8.8 1 07119905529 $0.96
10 Hex nut BM8-8-ZNNIV-SI 1 07129904874
11 Self-locking hex nut M8-8-ZNS3 2 10/2003 07129904002 $0.18
11 Hex nut BM8-8-ZNNIV-SI 2 10/2003 07129904874
12 Joint sleeve D=8MM 4 18207546579 $2.86
13 ASA-Bolt M10X45 2 10/2003 27101229717 $1.05
14 Bracket 1 10/2003 18317502870 $11.66
14 Bracket 1 10/2003 18207526889 $28.63
For vehicles with
Automatic transmission

S205A=Yes
14 Bracket 1 10/2003 18207526888 $19.76
15 Hex bolt with washer M8X35-U1 2 07119905533 $0.44
16 Vibration absorber 63 HZ 1 18107509368 $43.22
17 Thermo washer 1 18107509366 $9.75
18 Collar screw M8X70 1 18407540023 $4.07
19 Mudguard 2 10/2001 18107509365 $13.58 ENDED
20 Plug-in nut 6 10/2001 18121341655 $1.80
21 Saucer-head screw M5X8 CR 6 10/2001 18121341810 $5.05
22 Connection plate 1 18207508682 $10.71
Notes
  • ENDED = the part has been discontinued (no longer available).
