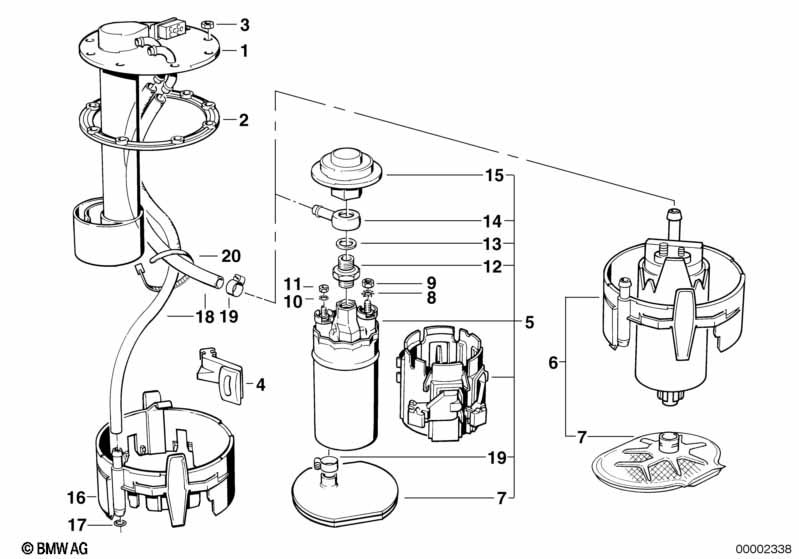

7' E32 740i Sending unit assy metal tank

Sending unit assy metal tank
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Sending unit assy metal tank 81L-90L/275MM 1 16141180889 $187.28
01 Sending unit assy metal tank 91L-102L/295MM 1 16141180891 $194.57
02 Rubber seal 1 16141178783 $6.70
03 Hex nut M6-8-ZNNIV SI 8 07119905543 $0.38
04 Rubber Mounting 4 16141178877 $2.03
06 Suction device w.pump EKP 3TS 1 16141183009 $361.12
07 Strainer 1 16141181865 $29.72
08 Tooth washer A5,1 1 07119936107 $0.18
09 Hex nut M5 1 07119922038 $0.09
10 Tooth washer A4,3 1 07119936037 $0.36
11 Hex nut M4 1 07119922028 $0.64
16 Braket fuel pump 1 16141179119 $25.83
17 O-ring 7X1,5 1 16141179153 $0.89
18 Fuel hose 8X13 X 16121180040 $25.73
19 Hose clamp L12-15 5 07129952104 $1.18
20 Cable tie L=292MM/B=4,8MM 2 61131377134 $0.77
