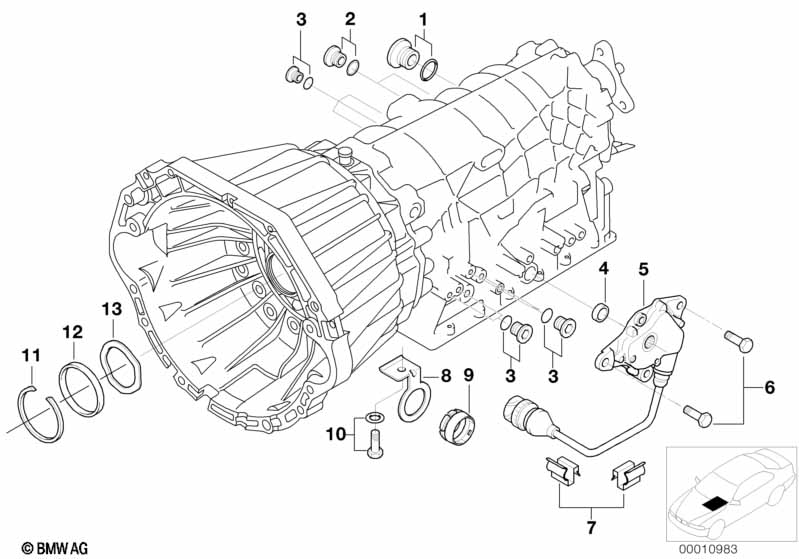

7' E38 735i A5S440Z attach.parts/ packings
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Screw Plug With Gasket Ring | M18X1,5 | 1 | 24117552349 | $7.65 | ||||
| 02 | Screw Plug With Gasket Ring | M14X1,5 | 2 | 24007571205 | $6.30 | +core | |||
| 03 | Screw Plug With Gasket Ring | M10X1 | 7 | 24117552351 | $4.60 | ||||
| 04 | Shaft seal | 10X18X5 | 2 | 24147571213 | $5.20 | ||||
| 05 | Position switch | 1 | 24107512755 | $277.78 | +core | ||||
| 06 | Hex bolt | M6X20 | 2 | 24101421422 | $1.87 | ||||
| 07 | Cable clamp | 4 | 24101422677 | $2.03 | |||||
| 08 | Holder | 1 | 24101422524 | $3.25 | |||||
| 09 | Connecting sleeve | 1 | 24101423242 | $1.68 | |||||
| 10 | Hex bolt | M6X20 | 1 | 24101421422 | $1.87 | ||||
| 11 | Snap ring | 1 | 24311421070 | $2.09 | |||||
| 12 | Shaft seal | 40X52X7 | 1 | 24311422671 | $11.45 | ||||
| 13 | Corrugated washer | 1 | 24311421071 | $4.13 |
Notes
- +core = plus core charge (possibility of a return of the old part)
