7' E38 750iL Valve Timing Gear - Cam Shaft

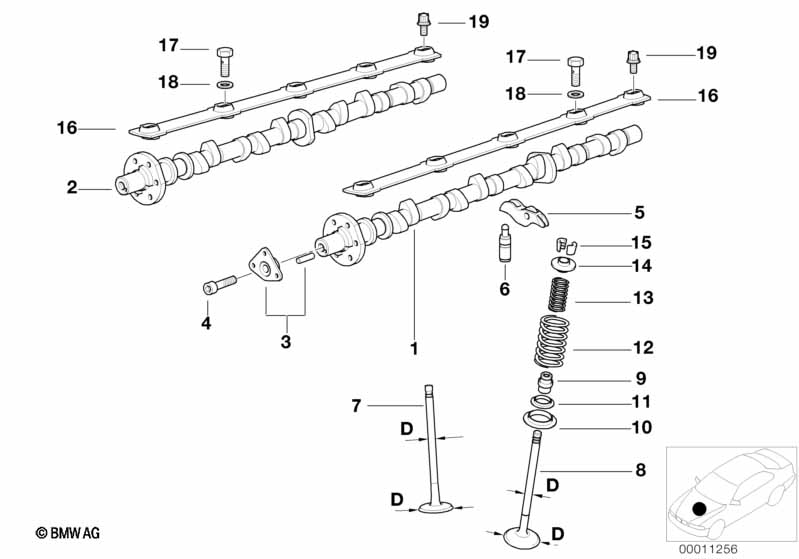

Valve Timing Gear - Cam Shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Camshaft Camshaft ZYL.7-12 1 11311702460 $793.35
02 Camshaft Camshaft ZYL.1-6 1 11311702459 $793.35 +core
03 Adapter 2 11311718733 $46.40
04 Fillister-head screw M8X25 2 07119919979 $0.30
05 Roller drag lever 24 11331747592 $55.08
06 Alignment element 24 11331712010 $32.50
07 Intake valve 42,0/6,94MM 12 11341739114
07 Intake valve w.oversize VA.system +0,1mm 42,0/7,04MM 12 11341739659 $42.69 +core
07 Intake valve w.oversize VA.system +0,2mm 42,0/7,14MM 12 11341739660 $42.69 +core
08 Exh. valve w.oversize VA.system +0,1mm 36,0/7,04MM 12 03/2005 11341739666 $114.53 ENDED, +core
08 Exh. valve w.oversize VA.system +0,1mm 12 11341739668 ENDED
08 Exhaust valve w.oversize VA.system+0,2mm 36,0/7,14MM 12 03/2005 11341739667 $114.95 +core
08 Exhaust valve w.oversize VA.system+0,2mm 12 11341739669 ENDED
08 Exhaust valve 36,0/6,94MM 12 11341739113
09 Repair kit valve seal ring 2 11349059172 $46.94
10 Lower spring plate 24 09/1997 11341726969 $3.77
10 Lower spring plate 24 09/1997 04/1999 11341735254 $3.77
10 Lower spring plate 24 04/1999 11341735254 $3.77
only in conjunction with
-- Lower spring plate 24 04/1999 11341726969 $3.77
11 Lower spring plate 24 09/1997 11341722544 $3.77
12 Valve spring 24 09/1997 11341247199 $4.36
12 Conical valve spring 24 09/1997 11341432484 $7.88
13 Valve spring inner 24 09/1997 11341247200 $7.88 ENDED
14 Upper spring plate 24 09/1997 11341734714 $3.77
14 Upper spring plate 24 09/1997 11341436854 $3.77
15 Valve collet 48 11341307136 $1.08
16 Oil pipe 2 11421725136 $50.50
17 Hollow bolt 2 11421738621 $6.01
18 Gasket ring A8X11,5-AL 4 07119963041 $0.57
19 Torx bolt M6X15 6 11311731951 $0.43
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
