5' E34 535i Activated Charcoal Filter/TUBING

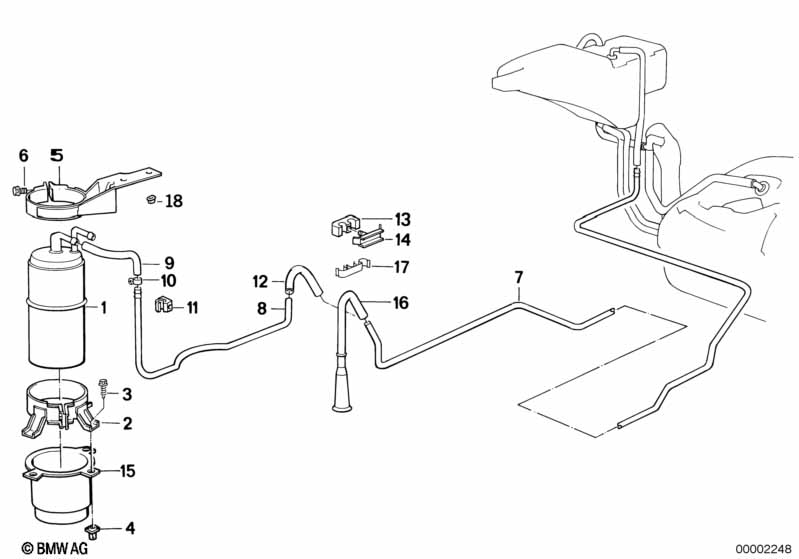

Activated Charcoal Filter/TUBING
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Activated Charcoal Filter 1 06/1988 16131178956 $131.82
01 Activated Charcoal Filter 1 06/1988 16131180463 $87.89 +core
02 Holder 1 16131179566 $15.97
03 Hex head screw B6,3X19 3 35111150944 $3.40 ENDED
04 Expanding nut ST 6.3 3 64121379221 $0.60
05 Holder 1 16131178933 $21.20
06 Hex bolt with washer M6X16-U2-ZNS3 1 07119902913
07 Vent pipe L=4497MM 1 16131179606 $15.05
08 Vent pipe 1 16131180295 $20.23
09 Fuel hose 561MM-920MM 1 13311722565 $45.38
10 Hose clamp L12-15 5 07129952104 $1.18
12 Fuel hose 8X13MM X 16121180409 $20.43
13 Clamping 2 16121107928 $4.00
14 Holder 2 16121155060 $1.08
15 Cover 1 06/1988 16131180151 $7.61 ENDED
17 Cable clip 1 16131179124 $1.22
18 Push-button 2 51131820141 $0.31
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
