5' E34 535i Closing system, door, rear

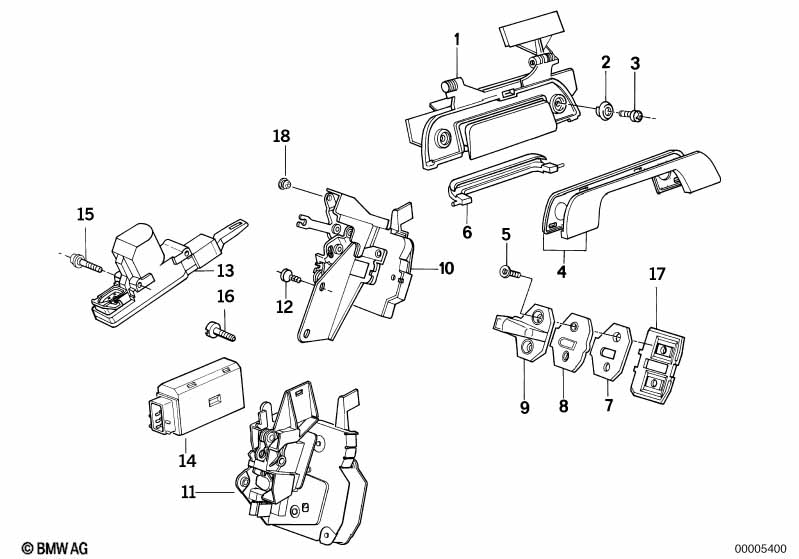

Closing system, door, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Door handle outer left 1 09/1991 51221928207 $60.74
01 Door handle outer right 1 09/1991 51221928208 $60.74
01 Door handle outer left 1 09/1991 51228138951 $60.74
01 Door handle outer right 1 09/1991 51228138952 $60.74
02 Gasket 4 51211908758 $0.21
03 Torx bolt M5X12 4 51218105499 $1.34
04 Covering rear 2 09/1991 51221938280 $19.82
04 Covering rear 2 09/1991 51228119076 $15.67
05 Torx-countersunk head screw M8X18 4 51211928850 $0.52
06 Base 2 09/1991 51211928133 $4.14
06 Base 2 09/1991 51211977669 $3.98
07 Striker plate gasket 2 11/1988 51211908558 $2.50
07 Striker plate gasket 2 11/1988 09/1991 51218101136 $2.50
07 Striker plate gasket 2 09/1991 51218127140 $2.50 SI 510691373
08 Washer 2 MM 2 11/1988 51211969766 $1.82
09 Latch Striker 2 11/1988 51211969995 $28.12
09 Latch Striker 2 11/1988 09/1991 51218101126 $46.28
09 Latch Striker 2 09/1991 51218105511 $44.32 SI 510691373
10 Door lock rear left 1 11/1988 51221944321 $141.99
10 Door lock rear right 1 11/1988 51221944322 $141.99
10 Door lock rear left 1 11/1988 09/1991 51228181005 $255.56 ENDED
10 Door lock rear right 1 11/1988 09/1991 51228181006 $141.99
11 Door lock rear left 1 09/1991 51228138927 $141.99
11 Door lock rear right 1 09/1991 51228138928 $141.99
12 Torx-countersunk head screw ISA M6X12 2 09/1991 51211950266 $0.47
12 Torx-bolt with washer ISA M6X12 2 09/1991 12/1995 51211940825 $0.59 ENDED
12 Torx-bolt with washer M6X12 2 09/1991 51219130334 $0.39
13 Actuator f rear door 2 09/1991 51269060622 $129.00
14 Actuator 2 09/1991 67111393999 $101.80 ENDED
14 Actuator 2 09/1991 67118353011
15 Hex bolt with washer L=16MM 4 09/1991 51261375979 $0.41
16 Torx bolt ISA M6X12 2 51211973382 $0.66
17 Lock plate 2 41351888409 $1.40
18 Grommet 4 52208238999 $0.40
Notes
  • SI = Service Information
  • ENDED = the part has been discontinued (no longer available).
