Z4 E89 Z4 35is Air ducts

Air ducts

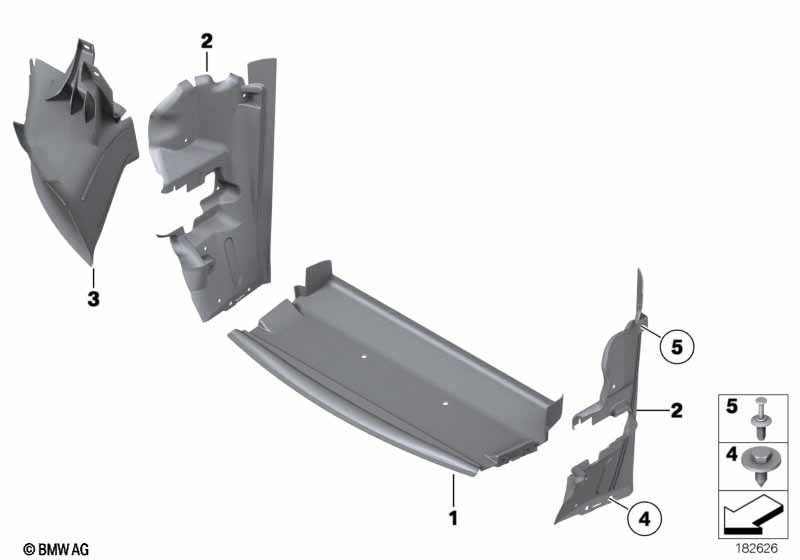

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Air duct, bottom -M- 1 51747903731
02 Air duct, lateral, left -M- 1 51747903729
02 Air duct, lateral, right -M- 1 51747903730
03 Air duct, engine oil cooler, right 1 51747903727
04 Hex head screw with washer ST4,8X16MM 4 07147129160 $0.36
04 Hex bolt TS5X17 SW8 D=22 4 07149126886
05 Expanding rivet D = 6MM 4 51111908077 $0.30
