5' E60 530d M Trim, rear

M Trim, rear

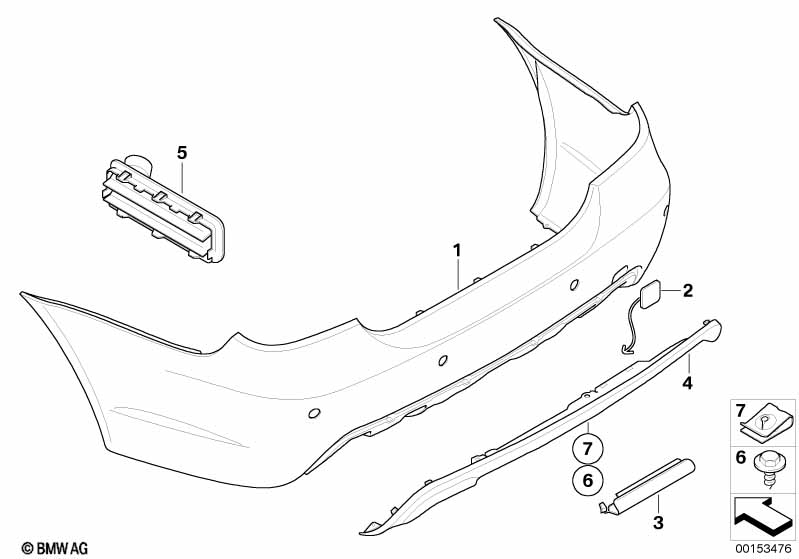

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
M Sports package
or
M Aerodynamics package
or
Aerodynamics package

P337A=Yes

S715A=Yes

S716A=Yes
01 Bumper trim panel, primed, rear M 1 51127897221 $594.37 +core
When ordering indicate color code
01 Bumper trim panel, painted, rear CODE - UNI/MET. 1 51110394705 ENDED, +core
For vehicles with
Park Distance Control (PDC)

S508A=Yes
01 Bumper trim panel, primed, rear M 1 51127897222 $623.02 +core
For vehicles with
Park Distance Control (PDC)
When ordering indicate color code

S508A=Yes
01 Bumper trim panel, painted, rear CODE - UNI/MET. 1 51110394707 ENDED
02 Flap, towing eye, primed M 1 51127897217 $12.39
When ordering indicate color code
02 Flap, towing eye, painted CODE - UNI/MET. 1 51120395209 $31.53 ENDED, +core
For vehicles with
Towing hitch, detachable

S235A=Yes
03 Trailer hitch flap, prime-coated M 1 51127897224 $36.23 +core
For vehicles with
Towing hitch, detachable
When ordering indicate color code

S235A=Yes
03 Trailer hitch flap, painted CODE - UNI/MET. 1 51120395207 $94.86 ENDED
04 Cover for diffuser, primed M 1 51127897215 $54.57 +core
When ordering indicate color code
04 Cover for diffuser, painted CODE - UNI/MET. 1 51120395228 $202.00 ENDED
For vehicles with
Towing hitch, detachable

S235A=Yes
04 Cover for diffuser, primed M 1 51127897216 $54.57 +core
For vehicles with
Towing hitch, detachable
When ordering indicate color code

S235A=Yes
04 Cover for diffuser, painted CODE - UNI/MET. 1 51120395231 $202.00 ENDED, +core
05 Rear ventilation 2 04/2010 64226910722 $8.23 ENDED
05 Rear ventilation 2 64229303806
For vehicles with
DVD changer

S696A=Yes
05 Rear ventilation 1 04/2010 64226910722 $8.23 ENDED
05 Rear ventilation, left 1 64226935439 $19.07
06 Screw ST 4.8X13 6 03/2007 51258118766 $1.22 ENDED
06 Screw ST 4.8X13 6 07149156623 $0.73
07 Clip for sheet metal nut 4.8X13 6 07146954937 $0.18
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
