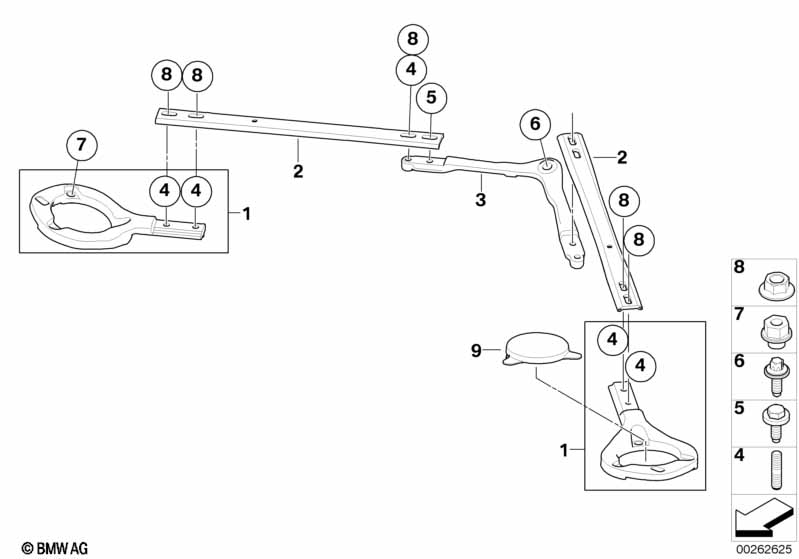

3' E90 LCI M3 Strut brace

Strut brace
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Ring, strut tower brace, left 1 51618055091
01 Ring, strut tower brace, right 1 51618055092
02 Strut brace 2 51618044553 $53.11 +core
03 Mount for strut brace 1 51618045860 $78.97 +core
04 Stud M8X29 2 51618046445 $4.80
04 Stud M8X32 4 51717898374 $4.80
05 Hex bolt M8X20-8.8ZNS3 2 07119904401 $0.38
06 ASA-Bolt with circlip M12X1.5X39 1 07146954965 $2.78
06 Torx bolt M10X16-10.9- 2 07146963730 $1.53
07 Hex nut M8-8-ZNS3 6 51717895241 $9.77
08 Self-locking collar nut M8-8 ZNS3 6 31316769731 $0.38
09 Covering cap 2 51617891281 $3.86
Notes
  • +core = plus core charge (possibility of a return of the old part)
