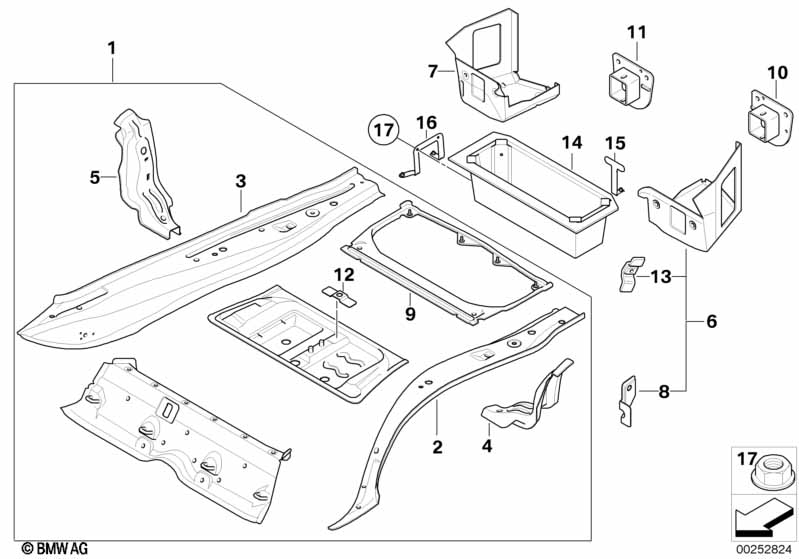

1' E82 M Coupé Mounting parts for trunk floor panel

Mounting parts for trunk floor panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trunk floor, upper part 1 41002996910 $590.46
Required for repair
-- Seam sealer 300ML 1 83422409985
02 Side member, top left 1 41117163877 $128.33
03 Side member, top right 1 41117163878 $128.33
04 Support for frame side member, left 1 41117185249 $42.51
05 Support for frame side member, right 1 41117185250 $42.51
06 Trunk floor left 1 41117163873 $55.25
07 Trunk floor right 1 41117163874 $55.25
08 Audio universal bracket 4 41147157727 $11.30
Performed using adhesive bonding/
riveting repair method.
09 Trunk floor frame 1 41007079448 $93.80
Required for repair
-- Blind rivet N3 24 83190301421 $0.31
-- Screw SF PLUS M5X15 2 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 8 83192158079 $0.39
-- Cleaner R1 100ML 1 83192211217 EBA 2446652
10 Mount, bumper left 1 41117173647 $48.68
11 Mount, bumper right 1 41117173648 $48.68
12 Bracket for components 4 41137145320 $1.58
13 Audio universal bracket 3 41147176125 $3.37
Notes
  • EBA = Einbauanleitung (Installation instructions)
