3' E90 330i Gearbox suspension

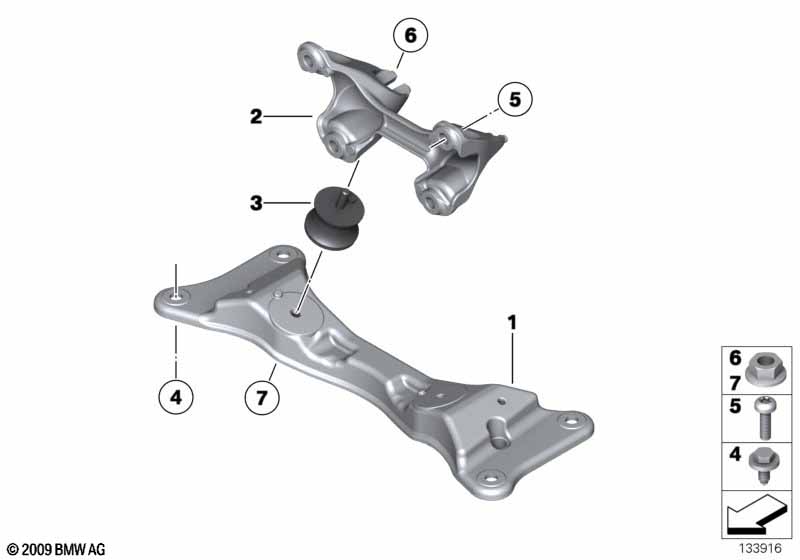

Gearbox suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Gearbox support 1 22316778059 $33.57
only in conjunction with
-- C-clip nut, self-locking ST 4.8 -ZNS3 1 07147154447 $0.27
For vehicles with
Automatic transmission

S205A=Yes
01 Gearbox support 1 22326760302 $34.60 ENDED
01 Gearbox support 1 22326778060 $39.25 +core
only in conjunction with
-- C-clip nut, self-locking ST 4.8 -ZNS3 1 07147154447 $0.27
02 Transmission supporting bracket 1 22316760303 $15.93
For vehicles with
Automatic transmission

S205A=Yes
02 Transmission supporting bracket 1 03/2010 22326795972 +core
02 Transmission supporting bracket 1 22326795972 +core
03 Transmission bearing set 2 22316799331 +core
For vehicles with
Automatic transmission

S205A=No
03 Transmission bearing set 2 22316799331 +core
04 Hex bolt with washer M8X22-8.8-ZNS3 4 22326760945 $1.08
05 ISA screw M10X32.5 4 22316774293 $1.02
06 Hex nut with plate M8 2 22316760944 $0.38
07 Hex nut M8-ZNS3 2 07119904024 $0.20
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
