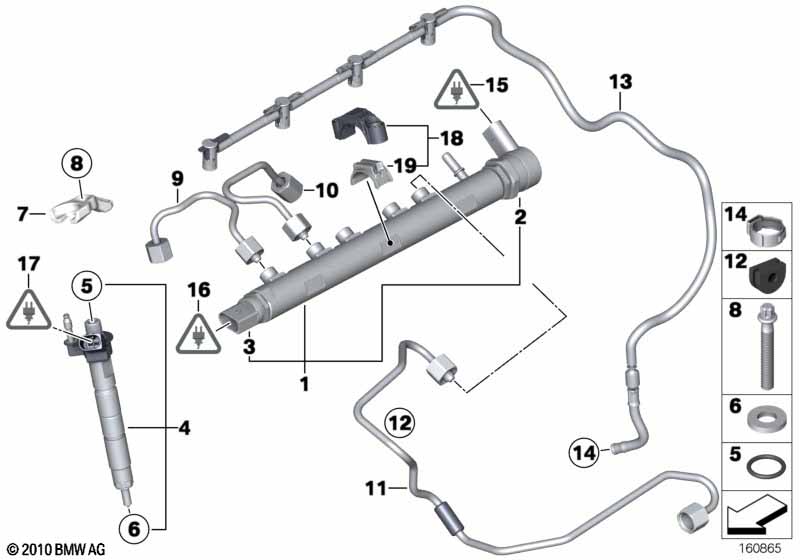

X3 F25 X3 20dX High pressure accumulator/injector/line
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure accumulator | 1 | 13537800601 | ||||||
| 02 | Pressure regulating valve | 1 | 13537801992 | ||||||
| 03 | Pressure sensor | 1 | 09/2018 | 13537800602 | |||||
| 03 | Pressure sensor | 1 | 13538577623 | ||||||
| 04 | RP injector | 4 | 13537810702 | ||||||
| 04 | Exch. injector | 4 | 13538572474 | ||||||
| 04 | Exch. injector | 4 | 13538576298 | ||||||
| 06 | Gasket ring | 4 | 13532247156 | $3.63 | |||||
| 07 | Clamping jaw, injector | 4 | 13537809798 | ||||||
| 08 | Screw | 4 | 13537805256 | ||||||
| 09 | Pressure hose assy | 1/2 | 2 | 13537810713 | |||||
| 10 | Pressure hose assy | 3/4 | 2 | 13537810714 | |||||
| 11 | Pressure hose assy | 1 | 13537800590 | ||||||
| 12 | Grommet | 1 | 13537812876 | ||||||
| 13 | Overflow oil line | 1 | 13537823408 | ||||||
| 16 | Socket housing | 1 | 09/2007 | 12527507257 | $2.53 | ||||
| only in conjunction with | |||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 3 | 09/2007 | 12521427612 | $0.50 | SI 2 02 05(194) | ||
| -- | Single conductor seal | 0,75-1,0MM² | 3 | 09/2007 | 12521748973 | $0.13 | |||
| 18 | Support | 2 | 11128519494 | ||||||
| 19 | Decoupling element | 5 | 11127809138 | ||||||
Notes
- SI = Service Information
