Performance ratt for BMW 3 Series E90 LCI 318i (2011)

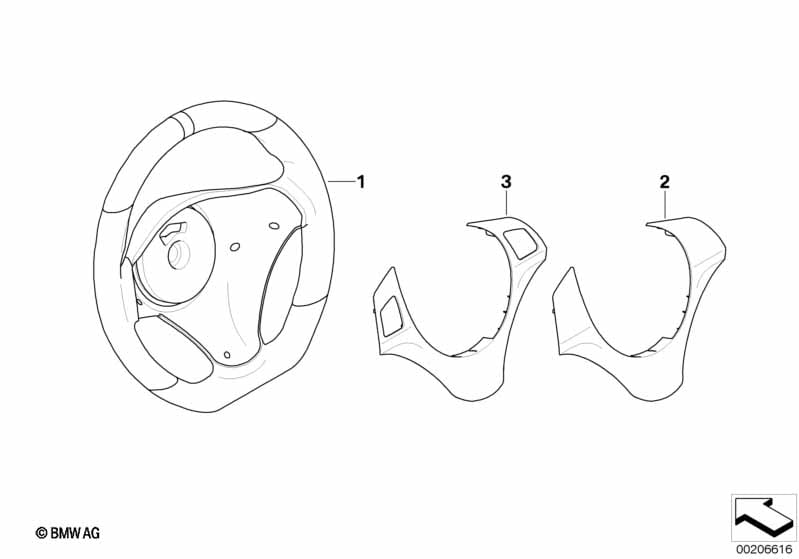

This Performance ratt technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Airbag-enheten och MFT kan endast övertas av sportratten eller M-sportratten Vid montering med S248A rattvärme utgår värmefunktionen. För fordon med Landsutförande China och M Dubbelkopplingsväxellåda m Drivelogic |
L8AAA=Nej S2MKA=Nej |
||||||||
| För fordon med Sportratt läder och M läderratt och Multifunktion f ratt |
S255A=Nej S710A=Nej S249A=Nej |
|||||||||
| 01 | Ratt | BMW PERFORMANCE | 1 | 32302157307 | $736.00 | +stomme | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | Skydd ratt Alcantara | BMW PERFORMANCE | 1 | 32300430402 | $68.00 | Avslutad, +stomme | Shop at ECS Tuning | |||
| För fordon med Sportratt läder och M läderratt och Multifunktion f ratt |
S255A=Nej S710A=Nej S249A=Ja |
|||||||||
| 01 | Ratt | BMW PERFORMANCE | 1 | 32302157307 | $736.00 | +stomme | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | Skydd ratt Alcantara | BMW PERFORMANCE | 1 | 32300430403 | $68.00 | +stomme | Shop at ECS Tuning | |||
| För fordon med Multifunktion f ratt |
S249A=Nej |
|||||||||
| 02 | Skydd ratt Alcantara | BMW PERFORMANCE | 1 | 32300430402 | $68.00 | Avslutad, +stomme | Shop at ECS Tuning | |||
| För fordon med Multifunktion f ratt |
S249A=Ja |
|||||||||
| 03 | Skydd ratt Alcantara | BMW PERFORMANCE | 1 | 32300430403 | $68.00 | +stomme | Shop at ECS Tuning | |||
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
- Avslutad = delen tillverkas inte längre.
