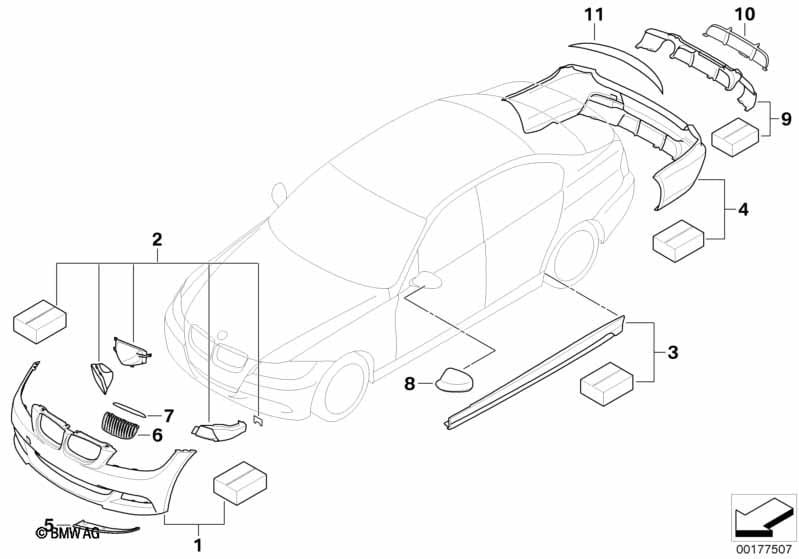

BMW Performance aerodynamik for BMW 3 Series E90 LCI 318i (2011)
This BMW Performance aerodynamik technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OBS: Monteringsanvisningen (EBA) ingår inte i kompletteringssatsen. Aktuell monteringsanvisning ska skrivas ut från den elektroniska reservdelskatalogen (ETK) och lämnas över till kunden. Komponenter som inte anges i monteringsanvisningen monteras enligt ISTA/AIR. OBS! I bilarna 335i och 335d måste dessutom monteringssatsen 51 19 2 149 516 Performance kylluftspaket motor och broms monteras, eftersom det annars föreligger fara för överhettning av motorn. |
|||||||||
| För fordon med Landsutförande Korea och Stralkastarspolare och Parkeringsavståndskontroll (PDC) och Parkeringsvärme och Adaptive Cruise Control |
L802A=Nej S502A=Ja S508A=Ja S536A=Ja S541A=Ja |
|||||||||
| 01 | BMW Performance aeropaket fram grund. | 1 | 51192149512 | Avslutad, +stomme | Shop at ECS Tuning | |||||
| 01 | BMW Performance aeropaket fram grund. | 1 | 51192149514 | Avslutad, +stomme | Shop at ECS Tuning | |||||
| 01 | BMW Performance aeropaket front lack | ALPINW. 3 (300) | 1 | 51192149529 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 01 | BMW Performance aeropaket front lack | ALPINW. 3 (300) | 1 | 51192149531 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 01 | BMW Performance aeropaket front lack | CODE UNI/MET. | 1 | 51192154305 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 01 | BMW Performance aeropaket front lack | CODE UNI/MET. | 1 | 51192154307 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| För fordon med Landsutförande Korea och Stralkastarspolare och Parkeringsavståndskontroll (PDC), bak och Parkeringsavståndskontroll (PDC) och Parkeringsvärme och Adaptive Cruise Control |
L802A=Nej S502A=Ja S507A=Ja S508A=Ja S536A=Ja S541A=Ja |
|||||||||
| 01 | BMW Performance aeropaket fram grund. | 1 | 51192149513 | Avslutad, +stomme | Shop at ECS Tuning | |||||
| 01 | BMW Performance aeropaket fram grund. | 1 | 51192149515 | Avslutad, +stomme | Shop at ECS Tuning | |||||
| 01 | BMW Performance aeropaket front lack | ALPINW. 3 (300) | 1 | 51192149530 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 01 | BMW Performance aeropaket front lack | ALPINW. 3 (300) | 1 | 51192149532 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 01 | BMW Performance aeropaket front lack | CODE UNI/MET. | 1 | 51192154306 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 01 | BMW Performance aeropaket front lack | CODE UNI/MET. | 1 | 51192154308 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 03 | BMW Performance aeropaket tröskel stl | 1 | 51192149517 | $472.95 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 03 | BMW Performance aeropaket tröskel lack | ALPINW. 3 (300) | 1 | 51192149537 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 03 | BMW Performance aeropaket tröskel lack | CODE UNI/MET. | 1 | 51192154314 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| För fordon med Parkeringsavståndskontroll (PDC), bak och Parkeringsavståndskontroll (PDC) och M aerodynamik-paket |
S507A=Nej S508A=Nej S715A=Nej |
|||||||||
| 04 | BMW Performance aeropaket bak grund. | 1 | 51192149518 | $961.00 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 04 | BMW Performance aeropaket bakparti lack | ALPINW. 3 (300) | 1 | 51192149538 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 04 | BMW Performance aeropaket bakparti lack | CODE UNI/MET. | 1 | 51192154315 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Inklädnad aktivtkolfilter | 1 | 51717070141 | $16.37 | Shop at ECS Tuning | |||||
| För fordon med Parkeringsavståndskontroll (PDC), bak och Parkeringsavståndskontroll (PDC) och M aerodynamik-paket |
S507A=Ja S508A=Nej S715A=Nej |
|||||||||
| 04 | BMW Performance aeropaket bak grund. | 1 | 51192149519 | $961.00 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 04 | BMW Performance aeropaket bakparti lack | ALPINW.3 (300) | 1 | 51192149539 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 04 | BMW Performance aeropaket bakparti lack | CODE UNI/MET. | 1 | 51192154316 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Inklädnad aktivtkolfilter | 1 | 51717070141 | $16.37 | Shop at ECS Tuning | |||||
| För fordon med Parkeringsavståndskontroll (PDC), bak och Parkeringsavståndskontroll (PDC) och M aerodynamik-paket |
S507A=Nej S508A=Ja S715A=Nej |
|||||||||
| 04 | BMW Performance aeropaket bak grund. | 1 | 51192149519 | $961.00 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 04 | BMW Performance aeropaket bakparti lack | ALPINW.3 (300) | 1 | 51192149539 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| 04 | BMW Performance aeropaket bakparti lack | CODE UNI/MET. | 1 | 51192154316 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Inklädnad aktivtkolfilter | 1 | 51717070141 | $16.37 | Shop at ECS Tuning | |||||
| För fordon med Landsutförande Korea och Landsutförande China Endast tillsammans med position 1 |
L802A=Nej L8AAA=Nej |
|||||||||
| 05 | Frontsplitter | PERFORMANCE | 1 | 51192149509 | $414.95 | Avslutad, +stomme | Shop at ECS Tuning | |||
| 05 | Frontsplitter | PERFORMANCE | 1 | 51192149510 | $414.95 | Avslutad, +stomme | Shop at ECS Tuning | |||
| 06 | Dekorgaller fram svart vänster | M PERFORMANCE | 1 | 09/2008 | 51712146911 | $72.50 | Avslutad | Shop at ECS Tuning | ||
| 06 | Dekorgaller fram svart höger | M PERFORMANCE | 1 | 09/2008 | 51712146912 | $72.50 | Avslutad | Shop at ECS Tuning | ||
| 08 | Ytterbackspegelkåpa Carbon vänster | 1 | 09/2008 | 51162146651 | $373.95 | Avslutad | Shop at ECS Tuning | |||
| 08 | Ytterbackspegelkåpa Carbon höger | 1 | 09/2008 | 51162146652 | $373.95 | Avslutad | Shop at ECS Tuning | |||
| För fordon med Landsutförande China och M aerodynamik-paket |
L8AAA=Nej S715A=Ja |
|||||||||
| 09 | BMW Performance diffusorpaket bak gru. | 1 | 51192153917 | $411.95 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 09 | BMW Performance diffusorpaket lackerat | ALPINW. 3 (300) | 1 | 51192153919 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 09 | BMW Performance diffusorpaket lackerat | CODE UNI/MET. | 1 | 51192154324 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| För fordon med Landsutförande China endast i kombination med position 4 och 9 |
L8AAA=Nej |
|||||||||
| 10 | Täckkåpa diffusor | CARBON | 1 | 51122147973 | $670.00 | Avslutad, +stomme | Shop at ECS Tuning | |||
| För fordon med Landsutförande China |
L8AAA=Nej |
|||||||||
| 11 | Bakspoiler kolfiber | 1 | 51712147114 | $553.00 | Avslutad, +stomme | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
