Kompl. sats, baklykta, vit for BMW 5 Series E60 525i (2005)

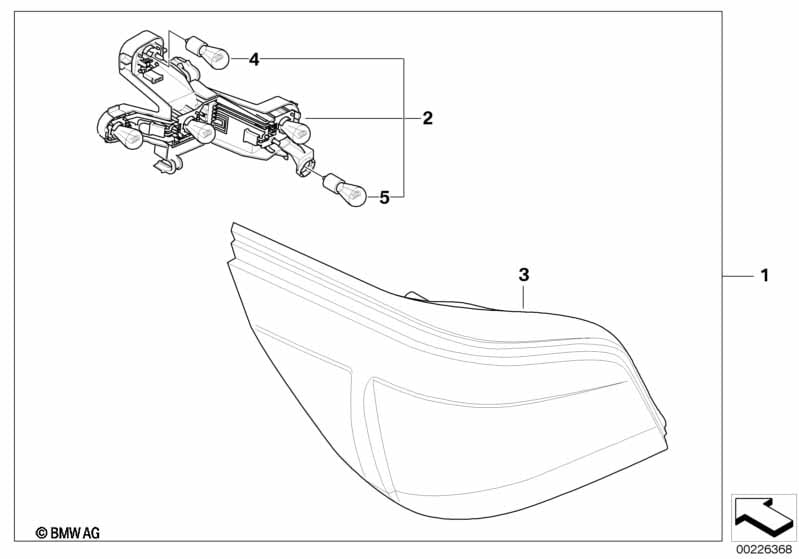

This Kompl. sats, baklykta, vit technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med M Sportpaket och M aerodynamik-paket och Aerodynamik-paket |
P337A=Nej S715A=Nej SZE3A=Nej |
|||||||||
| 01 | Kompl. sats, baklykta, vit | 1 | 63210301815 | $661.00 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Lamphaallare vänster f blinker vit | 1 | 63216935865 | $96.00 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Lamphaallare höger f blinker vit | 1 | 63216935866 | $96.00 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Baklykta vänster vit | 1 | 63216935863 | $241.95 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Baklykta höger, vit | 1 | 63216935864 | $241.95 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Glödlampa blå f blinker vit | 12V 21W | 2 | 63216934228 | $20.54 | Avslutad | Shop at ECS Tuning | |||
| 04 | Glödlampa blå f blinker vit | 12V 21W | 2 | 63217160907 | $20.36 | Shop at ECS Tuning | ||||
| 05 | Glödlampa Longlife | 12V 16W | 2 | 63217160935 | $6.42 | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
