Kabelsats släpvagnskoppling for BMW 7 Series E23 728 (1979)

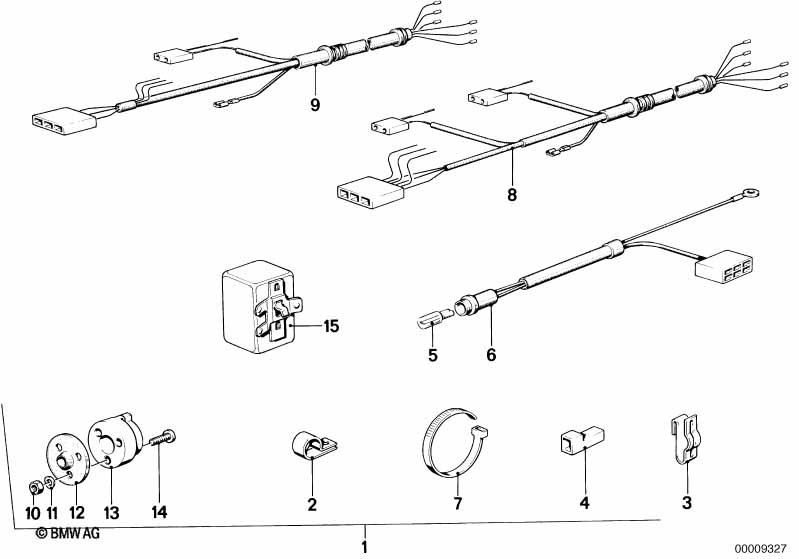

This Kabelsats släpvagnskoppling technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Klämma | 1 | 62121365810 | $1.64 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Klämma | 1 | 62121365810 | $1.64 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Isolerhylsa | 5 | 61131354668 | $0.63 | Shop at ECS Tuning | |||||
| 05 | Glödlampa | 12V 1,2W | X | 07509063579 | $1.50 | Avslutad | Shop at ECS Tuning | |||
| 05 | Glödlampa | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 06 | Kabelsats kontrollampa foer koervisare | 1 | 09/1981 | 61121364045 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Kabelbuntband | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 09 | Kabelsats släpvagnskoppling | 1 | 09/1982 | 61121363978 | Avslutad | Shop at ECS Tuning | ||||
| 10 | Sexkantmutter | M5 | 3 | 07119922038 | $0.09 | Avslutad | Shop at ECS Tuning | |||
| 11 | Fjaederring | B5 | 3 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Packning | 1 | 61131364967 | $3.63 | Avslutad | Shop at ECS Tuning | ||||
| 13 | Vägguttag | 1 | 61131371124 | Avslutad | Shop at ECS Tuning | |||||
| 14 | Linsskruv | M5X35 | 3 | 07119907698 | $0.27 | Shop at ECS Tuning | ||||
| 15 | Varningsblinkgivare | HELLA | 1 | 09/1981 | 61311365117 | $40.21 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
