Mardskydd for BMW 3 Series E46 318i (2001)

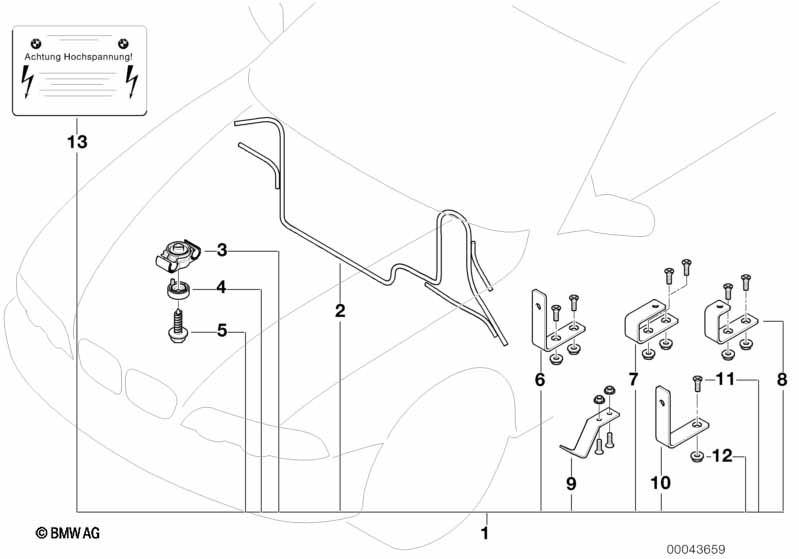

This Mardskydd technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OBS! Monteringsanvisningen (EBA) följer inte med i kompletteringssatsen. EBA ska skrivas ut dagsaktuellt från Aftersales-portalen (ASAP) och överlämnas till kunden. |
|||||||||
| För fordon med Paket daligt vägen och Utförande för varmt klimat |
S815A=Nej S823A=Nej |
|||||||||
| 01 | Mardskydd | E46 BENZIN-MOD. | 1 | 02/2003 | 82109416928 | Avslutad, +stomme | Shop at ECS Tuning | |||
| 02 | Trad | A | 1 | 82109416931 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 03 | Ledningsfastsättning | 4 | 82100000028 | Avslutad | Shop at ECS Tuning | |||||
| 04 | Underlagsplaata | 4 | 82100000029 | Avslutad | Shop at ECS Tuning | |||||
| 05 | Plaatskruv | ST5,5X19-C-Z1 | 4 | 07119916955 | Avslutad | Shop at ECS Tuning | ||||
| 06 | Hållare | E46 / NR.1 | 2 | 82109416932 | Avslutad | Shop at ECS Tuning | ||||
| För fordon med Automatväxel |
S205A=Nej |
|||||||||
| 07 | Hållare | E46 / NR.2 | 1 | 82109416933 | Avslutad | Shop at ECS Tuning | ||||
| För fordon med Automatväxel |
S205A=Ja |
|||||||||
| 08 | Hållare | E46 / NR.3 | 1 | 82109416934 | Avslutad | Shop at ECS Tuning | ||||
| 09 | Hållare | E46 / NR.4 | 1 | 82109416935 | Avslutad | Shop at ECS Tuning | ||||
| 10 | Hållare | E46 / NR.5 | 1 | 82109416936 | Avslutad | Shop at ECS Tuning | ||||
| 11 | Skruv med saenkhuvud | M4X10-A2-70-H | 6 | 07119903253 | Avslutad | Shop at ECS Tuning | ||||
| 12 | Sexkantmutter | M4-A2-70 | 6 | 07119922854 | Shop at ECS Tuning | |||||
| 13 | Anvisningsskylt | MARDERSCHUTZ | 1 | 82109416948 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
