Motorupphaengning/motordaempare for BMW 3 Series E21 320i (1977)

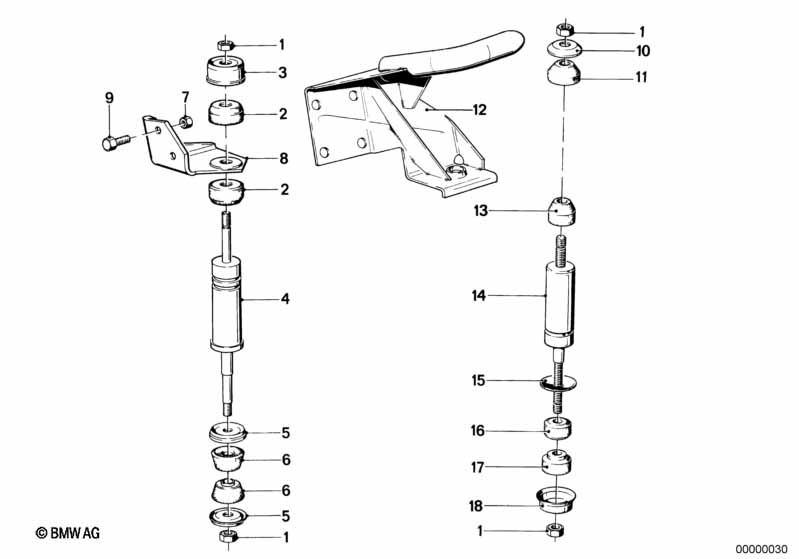

This Motorupphaengning/motordaempare technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sexkantmutter | M6-8-ZNS3 | 2 | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| 01 | Sexkantmutter självlasning | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 02 | Ring | 2 | 09/1978 | 11811245570 | $4.60 | Avslutad | Shop at ECS Tuning | |||
| 03 | Lock | 1 | 09/1978 | 11811245572 | $1.74 | Avslutad | Shop at ECS Tuning | |||
| 04 | Motordaempare | 1 | 09/1978 | 11811245574 | $103.86 | Avslutad | Shop at ECS Tuning | |||
| 05 | Lock | 2 | 09/1978 | 11811245571 | $4.87 | Avslutad | Shop at ECS Tuning | |||
| 06 | Ring | 2 | 09/1978 | 11811245569 | $4.60 | Avslutad | Shop at ECS Tuning | |||
| 07 | Sexkantmutter självlasning | M8-8-ZNNI SI | 2 | 09/1978 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 08 | Hållare | 1 | 09/1978 | 11811245859 | $7.59 | Avslutad | Shop at ECS Tuning | |||
| 09 | Sexkantskruv | M8X20-ZNNIV SI | 2 | 09/1978 | 07119903039 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
