Oljetraag/oljesticka for BMW 3 Series E21 320i (1977)

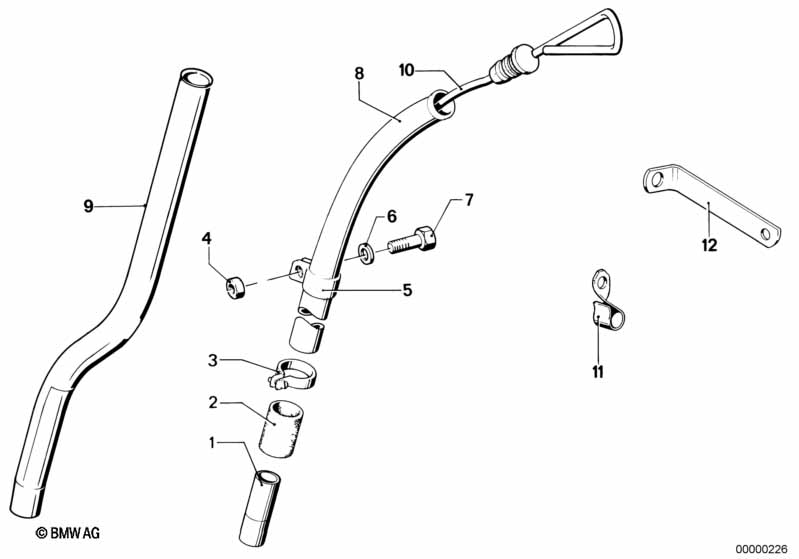

This Oljetraag/oljesticka technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Styrningsrör | 1 | 11111258354 | $28.13 | Shop at ECS Tuning | |||||
| 02 | Muff | 1 | 11431258329 | $2.48 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Slangklaemma | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 04 | Sexkantmutter | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Klämma | 1 | 11431258342 | $1.04 | Shop at ECS Tuning | |||||
| 06 | Underlagsplaata | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Sexkantskruv | M6X20 | 1 | 09/1979 | 07119913477 | $0.18 | Avslutad | Shop at ECS Tuning | ||
| 08 | Ledningsroer oeverdel | 1 | 09/1979 | 11431260338 | $32.73 | Avslutad | Shop at ECS Tuning | |||
| 10 | Oljesticka | GES.L=552 MM | 1 | 09/1979 | 11431266740 | $14.41 | Avslutad | Shop at ECS Tuning | ||
| 11 | Klämma | 1 | 13311261760 | $3.17 | Avslutad | Shop at ECS Tuning | ||||
| 12 | Hållare | 1 | 09/1979 | 11431264099 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
