Reducering av foeroreningar I avgaserna for BMW 3 Series E21 320i (1977)

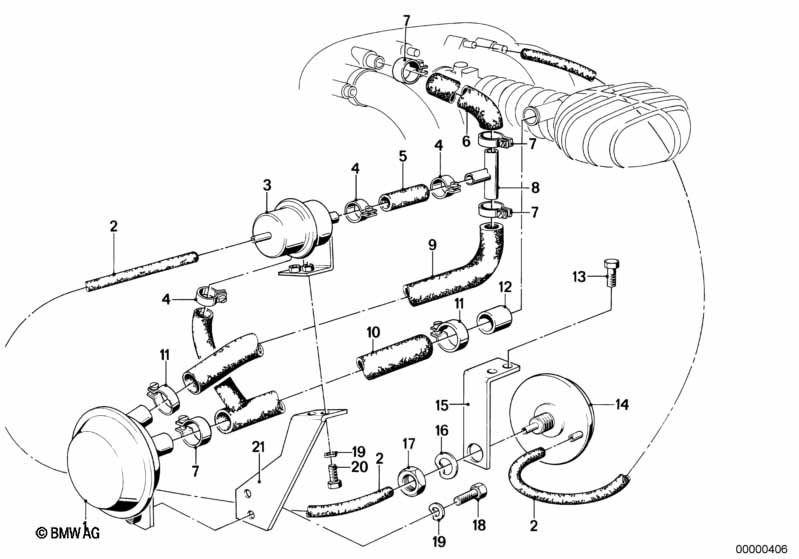

This Reducering av foeroreningar I avgaserna technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med Colorado version |
=Ja |
|||||||||
| 01 | Tillsatsluftventil | 1 | 09/1977 | 11741264779 | $122.76 | Avslutad | Shop at ECS Tuning | |||
| 02 | Vakuumslang svart | 3,5X1,8 | X | 09/1977 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 03 | Undertrycksbegraensare | 1 | 09/1977 | 11741265864 | $129.46 | Avslutad | Shop at ECS Tuning | |||
| 04 | Slangklaemma | L12-15 | 3 | 09/1977 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 05 | Slang | 1 | 09/1977 | 11741265869 | Avslutad | Shop at ECS Tuning | ||||
| 06 | Luftslang | 1 | 09/1977 | 11741265868 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Slangklaemma | L18-24 | 3 | 09/1977 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 08 | Foerdelarstycke | 1 | 09/1977 | 11531262151 | Avslutad | Shop at ECS Tuning | ||||
| 09 | Slang | 1 | 09/1977 | 11741265867 | Avslutad | Shop at ECS Tuning | ||||
| 10 | Slang | 1 | 09/1977 | 11741265866 | Avslutad | Shop at ECS Tuning | ||||
| 11 | Slangklaemma | L23-29 | 1 | 09/1977 | 07129952111 | $0.93 | Avslutad | Shop at ECS Tuning | ||
| 11 | Slangklaemma | L16-30 | 1 | 09/1977 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 12 | Roer | 1 | 09/1977 | 11151262643 | $8.93 | Avslutad | Shop at ECS Tuning | |||
| 13 | Sexkantskruv | M5X16 | 2 | 09/1977 | 07119913241 | $0.18 | Avslutad | Shop at ECS Tuning | ||
| 14 | Styrdosa | 1 | 09/1977 | 11741265863 | $79.52 | Avslutad | Shop at ECS Tuning | |||
| 15 | Vinkelstoed | 1 | 09/1977 | 11741265865 | Avslutad | Shop at ECS Tuning | ||||
| 16 | Fjäderbricka | B14 | 1 | 09/1977 | 07119932147 | $0.20 | Shop at ECS Tuning | |||
| 17 | Sexkantmutter | M14X1,5 | 1 | 09/1977 | 07119901309 | $1.65 | Shop at ECS Tuning | |||
| 18 | Sexkantskruv | M6X12-8.8-ZNNIV | 2 | 09/1977 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 19 | Fjäderbricka svart | B6-ZN | 4 | 09/1977 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 20 | Sexkantskruv | M6X10-8.8-ZNS3 | 2 | 09/1977 | 07119904633 | $0.20 | Shop at ECS Tuning | |||
| 21 | Hållare | 1 | 09/1977 | 11741265870 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
