Cylinderblock/monteringsdetaljer for BMW 3 Series E36 320i (1995)

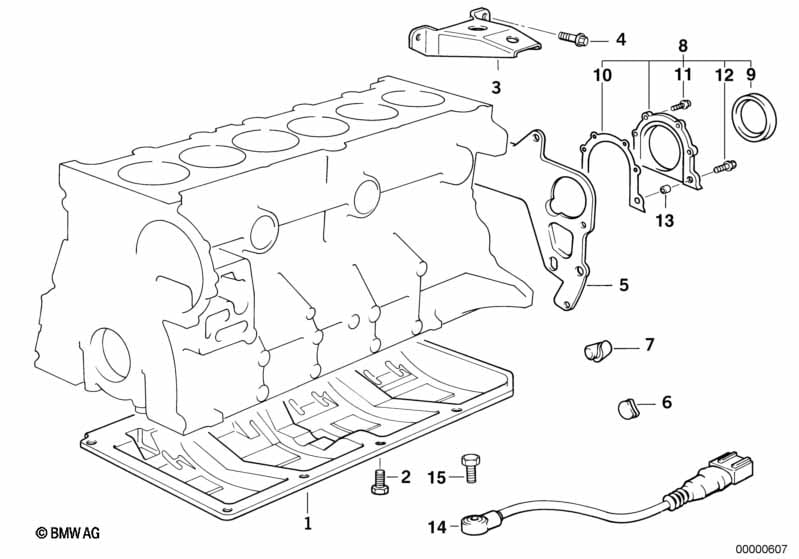

This Cylinderblock/monteringsdetaljer technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Skvalp skydd | 1 | 11131433060 | $32.22 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Sexkantskruv med bricka | M6X12-U1-8.8 | X | 01/1992 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 03 | Faestplaat | 1 | 11111726768 | $5.30 | Shop at ECS Tuning | |||||
| 04 | Sexkantskruv med bricka | M8X16 | 2 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Täckplaat | 1 | 11141730692 | $11.15 | Shop at ECS Tuning | |||||
| 06 | Sidolock | 1 | 11141730453 | $3.22 | Shop at ECS Tuning | |||||
| 07 | Plugg | 11,50MM | 1 | 11111714541 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Sats lock | 1 | 11142247867 | $94.60 | Avslutad | Shop at ECS Tuning | ||||
| 09 | Axeltätning | 90X110X12 | 1 | 11142249533 | $58.96 | Shop at ECS Tuning | ||||
| 10 | Packning metall | 1 | 11141432240 | $3.10 | Shop at ECS Tuning | |||||
| 11 | Sexkantskruv med bricka | M6X25-ZNNIV SI | 4 | 04/1993 | 07119905400 | $0.65 | Shop at ECS Tuning | |||
| 12 | Sexkantskruv med bricka | M8X26-Z1-ZNS3 | 2 | 04/1993 | 07119902919 | $0.53 | Shop at ECS Tuning | |||
| 13 | Passhylsa | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 14 | Knackningssensor | MS40 | 2 | 09/1992 | 12141730029 | $116.72 | Shop at ECS Tuning | |||
| 15 | Sexkantskruv | M8X30 | 2 | 07119913664 | $0.47 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
