Ventilkappa for BMW 3 Series E36 320i (1995)

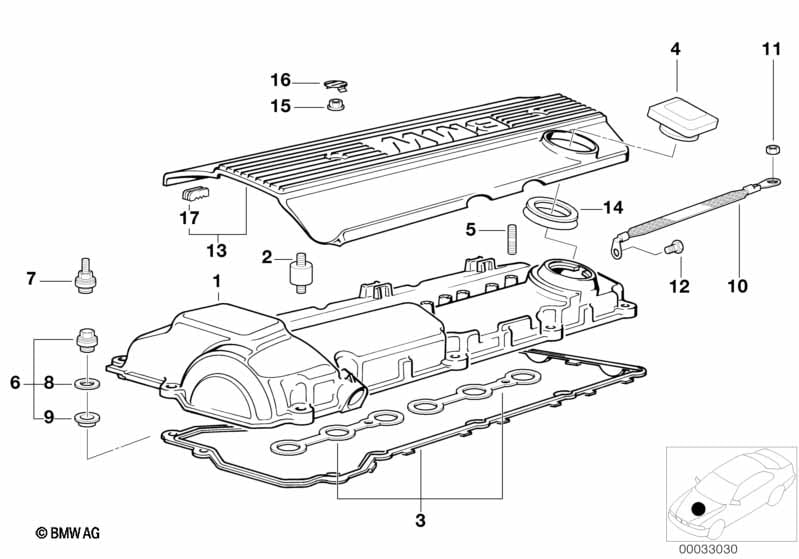

This Ventilkappa technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ventilkappa | 1 | 09/1992 | 11121738410 | $270.39 | Avslutad | Shop at ECS Tuning | |||
| 02 | Gummilager | 2 | 11121730356 | $15.63 | Shop at ECS Tuning | |||||
| 03 | Sats kontur-packning | 1 | 09/1992 | 11120034107 | $38.45 | Shop at ECS Tuning | ||||
| 04 | Förslutningslock oljepåfyllningsrör | 1 | 11121743294 | $7.49 | Shop at ECS Tuning | |||||
| 04 | Förslutningslock oljepåfyllningsrör | 1 | 11127509328 | $7.78 | Shop at ECS Tuning | |||||
| 05 | Stiftskruv | M6X35-ZNS3 | X | 07129903886 | Shop at ECS Tuning | |||||
| 06 | Kupolmutter | M6 | X | 11121738607 | $3.10 | Avslutad | Shop at ECS Tuning | |||
| 07 | Kupolmutter | M6 | 1 | 11121738608 | $3.17 | Shop at ECS Tuning | ||||
| 08 | Underlagsplaata | X | 11127838077 | $1.23 | Shop at ECS Tuning | |||||
| 09 | Tätningsgummi | X | 11121437395 | $1.17 | Shop at ECS Tuning | |||||
| 10 | Jordningsband | 1 | 05/1993 | 12421437633 | $6.28 | Shop at ECS Tuning | ||||
| 11 | Sexkantmutter | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 12 | Sexkantskruv | M6X10-8.8-ZNS3 | 2 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Panel | 1 | 12/1990 | 11121703462 | $106.44 | Shop at ECS Tuning | ||||
| 14 | Packning | 1 | 10/1992 | 11127526447 | $4.12 | Shop at ECS Tuning | ||||
| 15 | Sexkantmutter med plaata | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 16 | Kåpa | 2 | 11121726089 | $2.12 | Shop at ECS Tuning | |||||
| 17 | Gummiunderlag | 4 | 11121730352 | $1.87 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i Ventilkappa?
- This technical diagram illustrates the Ventilkappa within the Motor group for the 3 Series E36 320i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Ventilkappa (Part #11121738410).
- Which models use the hardware listed in this Ventilkappa?
- The hardware and components featured in the Ventilkappa are specific to the 3 Series E36 320i produced during 1995. These technical specifications ensure that parts like the Ventilkappa (11121738410) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ventilkappa assembly?
- Each item in the Ventilkappa corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Ventilkappa by locating its position on the schematic, which then links to the official BMW part number 11121738410 for the Motor section.
