Lambdasond/monteringsdetaljer for BMW 3 Series E36 M3 (1996)

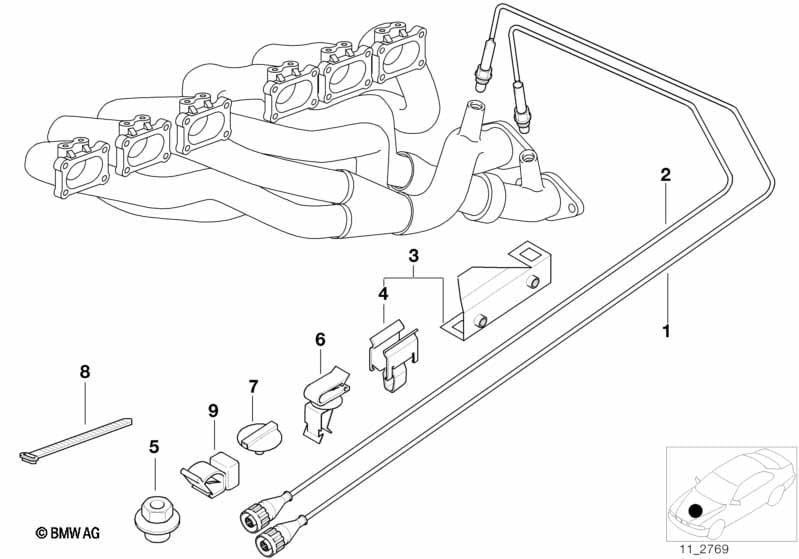

This Lambdasond/monteringsdetaljer technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lambdasond | L=1145MM | 1 | 11781404696 | $215.65 | Shop at ECS Tuning | ||||
| 02 | Lambdasond | BOSCH/L=1005MM | 1 | 11781404697 | $215.65 | Shop at ECS Tuning | ||||
| 03 | Hållare foer lambdasond-kabel | 1 | 12521404808 | $6.14 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Haallare stickkontakt | 2 | 07149157161 | $1.31 | Shop at ECS Tuning | |||||
| 05 | Tryckknopp | 2 | 17111709419 | $0.33 | Shop at ECS Tuning | |||||
| 06 | Kabelhållare | 2 | 24507557220 | $1.88 | Shop at ECS Tuning | |||||
| 07 | Tryckknopp | 2 | 61131373669 | $0.93 | Shop at ECS Tuning | |||||
| 08 | Kabelbuntband | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 09 | Kabelhållare | 1 | 33181181310 | $1.23 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Lambdasond/monteringsdetaljer?
- This technical diagram illustrates the Lambdasond/monteringsdetaljer within the Motor group for the 3 Series E36 M3 produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Lambdasond (Part #11781404696).
- Which models use the hardware listed in this Lambdasond/monteringsdetaljer?
- The hardware and components featured in the Lambdasond/monteringsdetaljer are specific to the 3 Series E36 M3 produced during 1996. These technical specifications ensure that parts like the Lambdasond (11781404696) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lambdasond/monteringsdetaljer assembly?
- Each item in the Lambdasond/monteringsdetaljer corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Lambdasond by locating its position on the schematic, which then links to the official BMW part number 11781404696 for the Motor section.
