Kylsystem-vattenslang for BMW 1502-2002tii 2002 (1970)

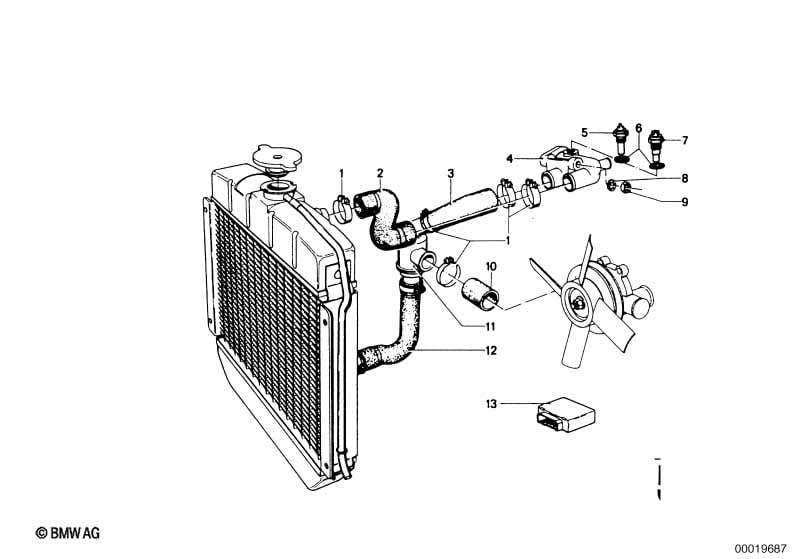

This Kylsystem-vattenslang technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Slangklaemma | L37-43 | 8 | 03/1966 | 07/1977 | 07129952117 | $1.09 | Shop at ECS Tuning | ||
| 02 | Slang | 1 | 03/1966 | 07/1977 | 11531266477 | $17.09 | Shop at ECS Tuning | |||
| 03 | Vattenslang | 1 | 03/1966 | 07/1977 | 11531266469 | $15.18 | Shop at ECS Tuning | |||
| 04 | Tätn.skruvar | AM14X1,5 | X | 07119909704 | Shop at ECS Tuning | |||||
| 04 | Packning | A14X18-AL | X | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Kopplingsflaens | 1 | 03/1966 | 07/1977 | 11531256642 | $202.83 | Avslutad | Shop at ECS Tuning | ||
| 04 | Kopplingsflaens | 1 | 03/1966 | 07/1977 | 11531261528 | $70.67 | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | Taetn.skruvar med packning | M14X1,5 | 1 | 03/1966 | 07/1977 | 11121740003 | $3.68 | Shop at ECS Tuning | ||
| 05 | Temperatur givare | 1 | 62111268355 | Shop at ECS Tuning | ||||||
| 06 | Packning | A14X18-AL | 2 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Fjäderbricka | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Sexkantmutter med fläns | M8 | 1 | 11611713432 | $0.43 | Avslutad | Shop at ECS Tuning | |||
| 10 | Vattenslang | 1 | 03/1966 | 07/1977 | 11531266471 | $8.93 | Shop at ECS Tuning | |||
| 11 | Termostat | 80CEL | 1 | 03/1966 | 07/1977 | 11531253249 | $80.00 | Shop at ECS Tuning | ||
| 12 | Slang | 1 | 03/1966 | 07/1977 | 11531266452 | $16.22 | Shop at ECS Tuning | |||
| KLIMATANLAEGGNING | ||||||||||
| 12 | Slang | 1 | 09/1967 | 07/1977 | 11531250702 | $19.61 | Shop at ECS Tuning | |||
Notering
- Avslutad = delen tillverkas inte längre.
