Oljeförsörjning/Oljepump for BMW 3 Series E90 318d (2005)

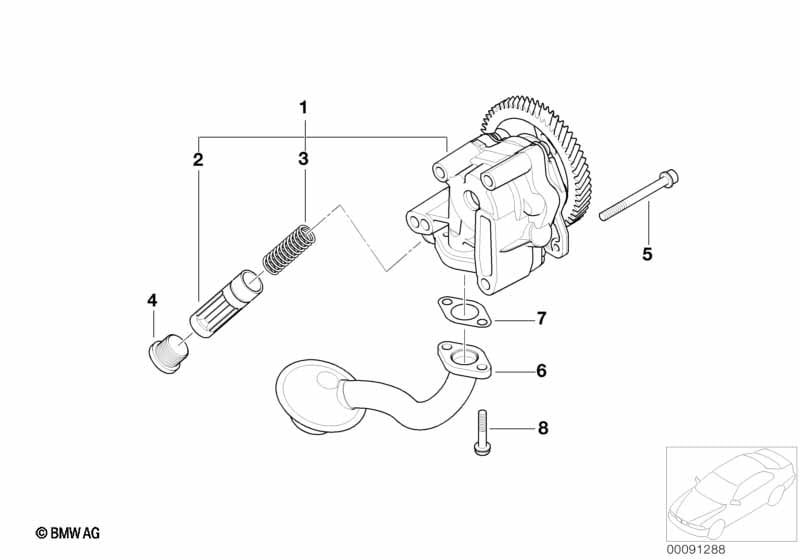

This Oljeförsörjning/Oljepump technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oljepump | 1 | 11417805813 | Avslutad, +stomme | Shop at ECS Tuning | |||||
| 02 | Kolv | 1 | 11411729141 | $10.13 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Tryckfjäder | 1 | 11412247299 | Shop at ECS Tuning | ||||||
| 04 | Tätn.skruvar | 1 | 11417786596 | Avslutad | Shop at ECS Tuning | |||||
| 05 | Torx-skruv med plaata | M6X68 | 2 | 11417786713 | Shop at ECS Tuning | |||||
| 05 | Torx-skruv med plaata | M7X74 | 2 | 11417793118 | Shop at ECS Tuning | |||||
| 06 | Insugningsrör med tätning | 1 | 11417794147 | Shop at ECS Tuning | ||||||
| 07 | Kontur-packning | 1 | 11417796507 | Avslutad | Shop at ECS Tuning | |||||
| 08 | Flänsskruv | M6X25 | 3 | 11131710734 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
