Remdrift-generator/ A/C /styrservo for BMW 7 Series F02 740Li

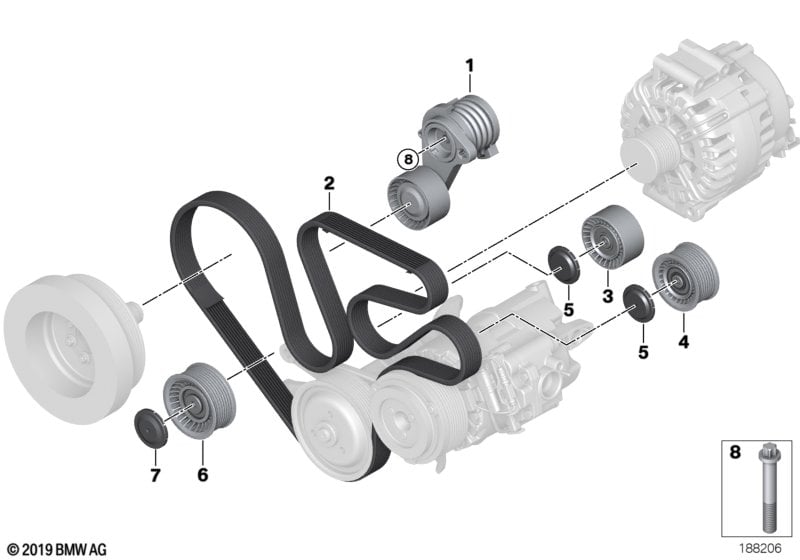

This Remdrift-generator/ A/C /styrservo technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 740Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Remspaennare | 1 | 11287627052 | Shop at ECS Tuning | ||||||
| 02 | Drivrem tandad | 8DPK 1833 | 1 | 11287628279 | +stomme | Shop at ECS Tuning | ||||
| 03 | Omlänkningsrulle | 1 | 11287559887 | $24.95 | Shop at ECS Tuning | |||||
| 04 | Omlänkningsrulle | 1 | 11287559889 | $45.29 | Shop at ECS Tuning | |||||
| 05 | Skyddskaapa | 2 | 11287795159 | $2.37 | Shop at ECS Tuning | |||||
| 06 | Omlänkningsrulle | 1 | 11287627053 | Shop at ECS Tuning | ||||||
| 07 | Skyddskaapa | 1 | 11281435114 | $2.37 | Shop at ECS Tuning | |||||
| 08 | Torx skruv | M10X65-8.8-ZNS3 | 1 | 07129904681 | $1.64 | Shop at ECS Tuning |
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 740Li Remdrift-generator/ A/C /styrservo?
- This technical diagram illustrates the Remdrift-generator/ A/C /styrservo within the Motor group for the 7 Series F02 740Li. It provides a detailed exploded view of the components, identifying key parts such as the Remspaennare (Part #11287627052).
- Which models use the hardware listed in this Remdrift-generator/ A/C /styrservo?
- The hardware and components featured in the Remdrift-generator/ A/C /styrservo are specific to the 7 Series F02 740Li. These technical specifications ensure that parts like the Remspaennare (11287627052) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Remdrift-generator/ A/C /styrservo assembly?
- Each item in the Remdrift-generator/ A/C /styrservo corresponds to the numbered list below the illustration. For the 7 Series F02 740Li, you can identify the Remspaennare by locating its position on the schematic, which then links to the official BMW part number 11287627052 for the Motor section.
