Kylsystem-vattenpump/thermostat for BMW 5 Series F10 528i (2009)

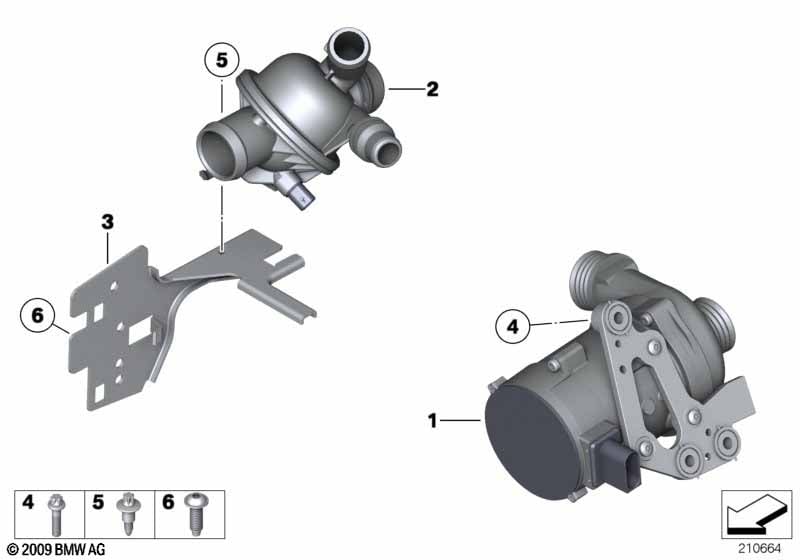

This Kylsystem-vattenpump/thermostat technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kylvätskepump elektrisk | 1 | 11518635092 | Shop at ECS Tuning | ||||||
| endasti i kombination med | ||||||||||
| -- | Sats alum. skruvar vattenpump | 8X32 | 1 | 11510392553 | $7.56 | Shop at ECS Tuning | ||||
| OBS! Aluminiumskruvar ska endast användas 1 gång. För ytterligare information se reparationsanvisningen! |
||||||||||
| 02 | Termostat | 1 | 11538671517 | Shop at ECS Tuning | ||||||
| 03 | Hållare | 1 | 11537580626 | Shop at ECS Tuning | ||||||
| OBS! Aluminiumskruvar ska endast användas 1 gång. För ytterligare information se reparationsanvisningen! |
||||||||||
| 04 | Sats alum. skruvar vattenpump | 8X32 | 1 | 11510392553 | $7.56 | Shop at ECS Tuning | ||||
| 05 | ASA-Skruv | M5X21,8 | 1 | 11537581867 | Shop at ECS Tuning | |||||
| 06 | Skruv självskärande | D6X20 ZNS3 | 2 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
