Vevaxel-vevstake for BMW 3 Series E36 M3 (1996)

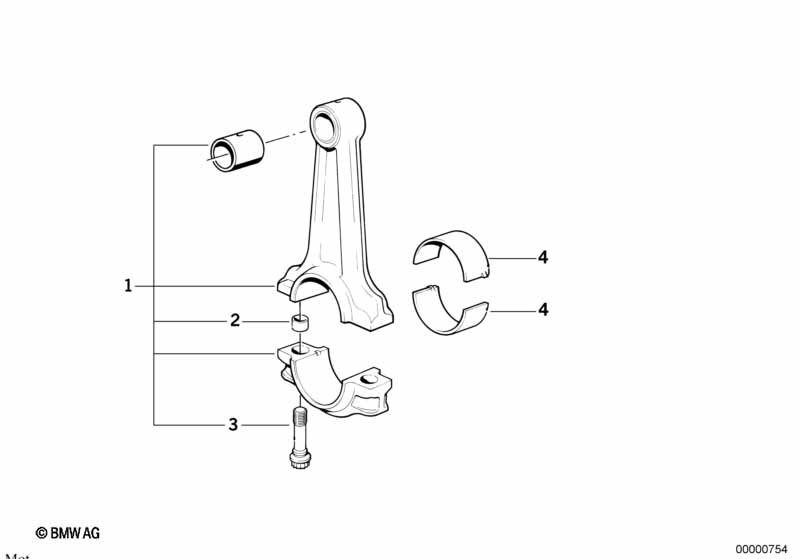

This Vevaxel-vevstake technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sats vevstake | 1 | 11241406582 | $3034.65 | Shop at ECS Tuning | |||||
| 02 | Passhylsa | 6X11,6MM | X | 03/1997 | 11241315668 | $1.18 | Shop at ECS Tuning | |||
| 03 | Vevstaksskruv | X | 03/1997 | 11241317184 | $6.32 | Shop at ECS Tuning | ||||
| 04 | Lagerskål röd | 49,00MM(0) | X | 11241404008 | $16.49 | Shop at ECS Tuning | ||||
| 04 | Lagerskål | 48,75MM(+0,25) | X | 11241404009 | $22.73 | Shop at ECS Tuning | ||||
| 04 | Lagerskål | 48,50MM(+0,50) | X | 11241404010 | $22.73 | Shop at ECS Tuning | ||||
| 04 | Lagerskål blå | 49,00MM(0) | X | 11241404791 | $16.49 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Vevaxel-vevstake?
- This technical diagram illustrates the Vevaxel-vevstake within the Motor group for the 3 Series E36 M3 produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Sats vevstake (Part #11241406582).
- Which models use the hardware listed in this Vevaxel-vevstake?
- The hardware and components featured in the Vevaxel-vevstake are specific to the 3 Series E36 M3 produced during 1996. These technical specifications ensure that parts like the Sats vevstake (11241406582) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vevaxel-vevstake assembly?
- Each item in the Vevaxel-vevstake corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Sats vevstake by locating its position on the schematic, which then links to the official BMW part number 11241406582 for the Motor section.
