Ventilstyrning-transmision kedja nere for BMW 7 Series G11 730i (2019)

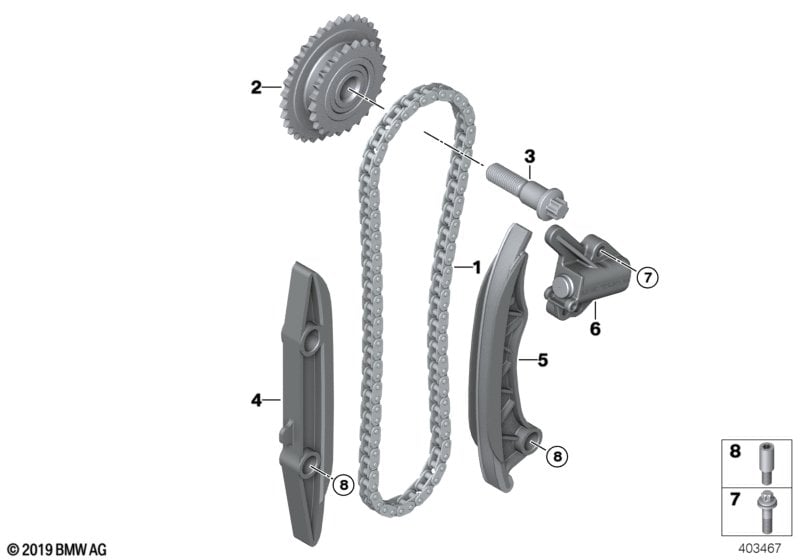

This Ventilstyrning-transmision kedja nere technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kedja | 1 | 13528648731 | Shop at ECS Tuning | ||||||
| 02 | Kedjehjul | 1 | 13528642165 | Shop at ECS Tuning | ||||||
| 03 | Lagerskruv | M12X1 | 1 | 13527617486 | Shop at ECS Tuning | |||||
| 04 | Styrskena | 1 | 13527636186 | Shop at ECS Tuning | ||||||
| 05 | Spaennskena | 1 | 13527636185 | Shop at ECS Tuning | ||||||
| 06 | Kedjespaennare | 1 | 13527797905 | Shop at ECS Tuning | ||||||
| 07 | ASA-Skruv | M6X22-Z1 | 2 | 13527800396 | Shop at ECS Tuning | |||||
| 08 | Lagertapp vevhus | 3 | 13527797908 | Shop at ECS Tuning |
