Oljetraag/oljesticka for BMW 5 Series G30 520i (2020)

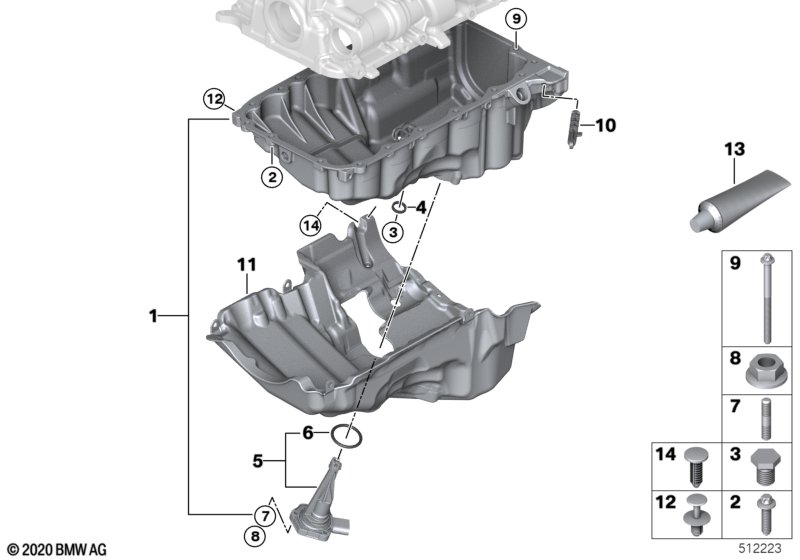

This Oljetraag/oljesticka technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oljetraag | 1 | 11138580122 | Shop at ECS Tuning | ||||||
| Krävs för reparationen | ||||||||||
| -- | Flytande tätning Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | ASA-Skruv | M8X30 | 17 | 11138592611 | Shop at ECS Tuning | |||||
| 03 | Tätn.skruvar | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 04 | Packning | A12X16-CU | 1 | 07119963132 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Olje niveausensor | 1 | 07/2023 | 12615A14C01 | Avslutad | Shop at ECS Tuning | ||||
| 05 | Olje niveausensor | 1 | 12615A740A3 | Shop at ECS Tuning | ||||||
| 06 | Packning | 1 | 12619454471 | Shop at ECS Tuning | ||||||
| 07 | Stiftskruv | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 08 | Sexkantmutter med plaata | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Torx skruv | M8X110 | 2 | 11137800625 | Shop at ECS Tuning | |||||
| 10 | Plugg | 1 | 11117536143 | $0.67 | Shop at ECS Tuning | |||||
| 11 | Ljudisolering oljetråg | 1 | 11148580088 | Shop at ECS Tuning | ||||||
| 12 | Expandernit | D = 8MM | 4 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Flytande tätning Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 14 | Clip | 1 | 51337025635 | $0.42 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
