Generatorfäste for BMW 2500-3.3Li 3.3Li

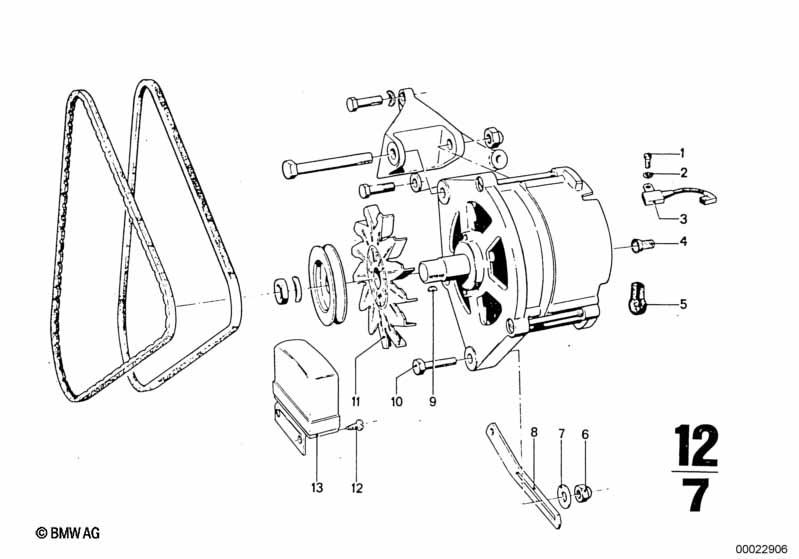

This Generatorfäste technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sexkantskruv | M5X8 | 1 | 08/1968 | 02/1977 | 07119913212 | $0.25 | Shop at ECS Tuning | ||
| 02 | Fjäderbricka | B5 | 1 | 08/1968 | 02/1977 | 07119932098 | $0.38 | Shop at ECS Tuning | ||
| 03 | Avstoerningskond.generator | BOSCH | 1 | 08/1968 | 02/1977 | 12311356564 | $18.88 | +stomme | Shop at ECS Tuning | |
| 05 | Isolerstycke | 6MM | 1 | 08/1968 | 02/1977 | 12311356217 | $2.95 | Avslutad | Shop at ECS Tuning | |
| 06 | Sexkantmutter självlasning | M8 | 1 | 03/1987 | 07129922714 | $0.17 | Avslutad | Shop at ECS Tuning | ||
| 06 | Sexkantmutter självlasning | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 07 | Underlagsplaata | A8,4X25 | 1 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Spaennstag | 1 | 08/1968 | 02/1977 | 12311266121 | $1.74 | Avslutad | Shop at ECS Tuning | ||
| 09 | Planfjaeder | 3X3,7 | 1 | 07119951430 | $1.21 | Shop at ECS Tuning | ||||
| 10 | Sexkantskruv | M8X40-ZNNIV SI | 1 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 11 | Ventilatorhjul | 1 | 12311350199 | $14.54 | Shop at ECS Tuning | |||||
| 12 | Skruv KFH | ST5,5X13 | 2 | 07119907770 | $0.11 | Avslutad | Shop at ECS Tuning |
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3Li Generatorfäste?
- This technical diagram illustrates the Generatorfäste within the Motor elsystem group for the 2500-3.3Li 3.3Li. It provides a detailed exploded view of the components, identifying key parts such as the Sexkantskruv (Part #07119913212).
- Which models use the hardware listed in this Generatorfäste?
- The hardware and components featured in the Generatorfäste are specific to the 2500-3.3Li 3.3Li. These technical specifications ensure that parts like the Sexkantskruv (07119913212) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Generatorfäste assembly?
- Each item in the Generatorfäste corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3Li, you can identify the Sexkantskruv by locating its position on the schematic, which then links to the official BMW part number 07119913212 for the Motor elsystem section.
