Insprutningsanlaeggning L-jetronic for BMW 6 Series E24 635CSi

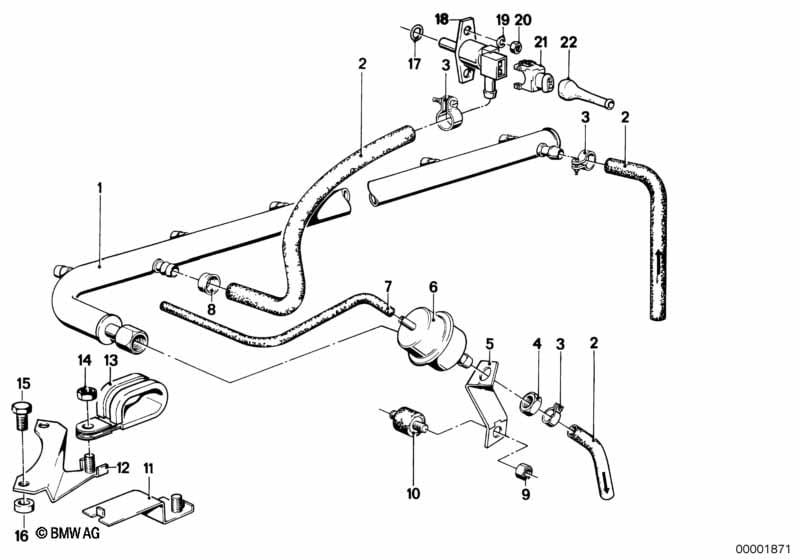

This Insprutningsanlaeggning L-jetronic technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Insprutningsroer | 1 | 09/1980 | 13531267326 | $126.57 | Shop at ECS Tuning | ||||
| 02 | Bränsleslang | 8X13MM | X | 09/1980 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 03 | Slangklaemma | L12-15 | 2 | 09/1980 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 04 | Sexkantmutter | M12X1,5 | 1 | 09/1980 | 07119921085 | Avslutad | Shop at ECS Tuning | |||
| 05 | Hållare | 1 | 09/1980 | 13531263848 | $1.50 | Avslutad | Shop at ECS Tuning | |||
| 06 | Tryckregulator | 2,5BAR | 1 | 09/1980 | 13531263782 | $148.94 | Avslutad | Shop at ECS Tuning | ||
| 07 | Vakuumslang svart | 3,3X1,8 | X | 09/1980 | 11747797175 | $13.51 | Avslutad | Shop at ECS Tuning | ||
| 08 | Hylsa | 7 | 09/1980 | 13531265969 | $3.37 | Avslutad | Shop at ECS Tuning | |||
| 09 | Sexkantmutter | M6-8-ZNNIV SI | 1 | 09/1980 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 10 | Gummilager | 1 | 09/1980 | 17111113699 | $5.18 | Shop at ECS Tuning | ||||
| 11 | Hållare braensleledning | 1 | 09/1980 | 13311272740 | Avslutad | Shop at ECS Tuning | ||||
| 13 | Klämma | D=2X14/15 | 1 | 09/1980 | 13311272726 | $3.17 | Avslutad | Shop at ECS Tuning | ||
| 14 | Sexkantmutter | M6-8-ZNNIV SI | 1 | 09/1980 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 15 | Sexkantskruv | M6X22-8.8-ZNS3 | 2 | 09/1980 | 07119904505 | $0.38 | Shop at ECS Tuning | |||
| 16 | Hylsa | 2 | 09/1980 | 13311271276 | Avslutad | Shop at ECS Tuning | ||||
| 17 | O-ring | 6,3X2,4 | 1 | 09/1980 | 07119903045 | $1.67 | Shop at ECS Tuning | |||
| 18 | Startventil | 1 | 09/1980 | 13641358917 | $106.30 | Shop at ECS Tuning | ||||
| 19 | Fjäderbricka svart | B6-ZN | 2 | 09/1980 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 19 | Underlagsplaata | 5.3-140 HV-ZNS | 2 | 09/1980 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 19 | Fjäderbricka | B6-ZNS3 | 2 | 09/1980 | 07119904496 | $1.78 | Avslutad | Shop at ECS Tuning | ||
| 20 | Sexkantmutter | M6-8-ZNNIV SI | 2 | 09/1980 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 21 | Kontakthus | 2-POL | 1 | 09/1980 | 12521706121 | $5.77 | Avslutad | Shop at ECS Tuning | ||
| 22 | Skyddskaapa | L=12,5MM | 1 | 09/1980 | 61131358330 | $5.33 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
