Insprutningsanlaeggning-ventil/ledning for BMW 7 Series E23 733i (1981)

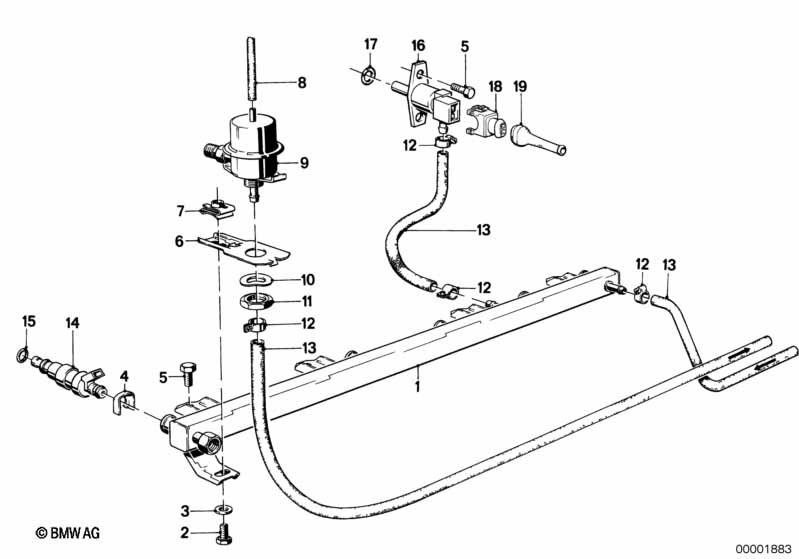

This Insprutningsanlaeggning-ventil/ledning technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Insprutningsroer | 1 | 09/1981 | 09/1982 | 13531274732 | $305.06 | Shop at ECS Tuning | |||
| 02 | Sexkantskruv | M6X10-8.8-ZN | 1 | 09/1981 | 09/1982 | 07119913426 | $0.25 | Avslutad | Shop at ECS Tuning | |
| 03 | Underlagsplaata | 6,4 | 1 | 09/1981 | 09/1982 | 07119931044 | $0.58 | Avslutad | Shop at ECS Tuning | |
| 04 | Klammer | 6 | 09/1981 | 09/1982 | 13531274729 | $0.67 | Shop at ECS Tuning | |||
| 05 | Sexkantskruv | M6X12-8.8-ZNNIV | 4 | 09/1981 | 09/1982 | 07119905524 | $0.27 | Shop at ECS Tuning | ||
| 06 | Faestplaat | 1 | 09/1981 | 09/1982 | 13531274547 | Avslutad | Shop at ECS Tuning | |||
| 07 | Mutterhaallare | M6 | 1 | 09/1981 | 09/1982 | 13531274755 | $1.23 | Avslutad | Shop at ECS Tuning | |
| 08 | Vakuumslang svart | 3,5X1,8 | X | 09/1981 | 09/1982 | 11727545323 | $14.82 | Shop at ECS Tuning | ||
| 09 | Tryckregulator | 2,5BAR | 1 | 09/1981 | 09/1982 | 13531273329 | $120.04 | Avslutad | Shop at ECS Tuning | |
| 10 | Fjäderbricka | B16 | 1 | 09/1981 | 09/1982 | 07119932162 | $0.24 | Shop at ECS Tuning | ||
| 11 | Sexkantmutter | M16X1,5-04-ZNS | 1 | 09/1981 | 09/1982 | 07119901307 | $1.80 | Shop at ECS Tuning | ||
| 12 | Slangklaemma | L12-15 | 3 | 09/1981 | 09/1982 | 07129952104 | $1.18 | Shop at ECS Tuning | ||
| 13 | Bränsleslang | 8X13MM | X | 09/1981 | 09/1982 | 16121180409 | $20.43 | Shop at ECS Tuning | ||
| 14 | Insprutningsventil | 6 | 09/1981 | 09/1982 | 13641273272 | $172.68 | Shop at ECS Tuning | |||
| 15 | O-ring | 7,52X3,53 | 12 | 09/1981 | 09/1982 | 13641730767 | $3.75 | Shop at ECS Tuning | ||
| 16 | Startventil | 1 | 09/1981 | 09/1982 | 13641358917 | $106.30 | Shop at ECS Tuning | |||
| 17 | O-ring | 6,3X2,4 | 1 | 09/1981 | 09/1982 | 07119903045 | $1.67 | Shop at ECS Tuning | ||
| 18 | Kontakthus | 2-POL | 7 | 09/1981 | 09/1982 | 12521706121 | $5.77 | Avslutad | Shop at ECS Tuning | |
| 19 | Skyddskaapa | L=12,5MM | 7 | 09/1981 | 09/1982 | 61131358330 | $5.33 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
