Luftmängdmeter for BMW 7 Series E23 733i (1981)

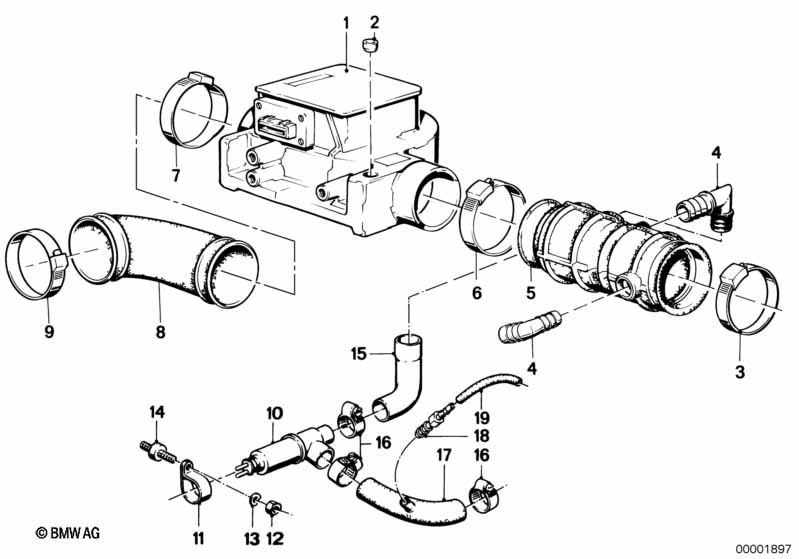

This Luftmängdmeter technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Luftmängdmeter | 1 | 09/1981 | 13621277564 | $771.11 | Avslutad | Shop at ECS Tuning | |||
| 01 | Luftmängdmeter | 1 | 09/1981 | 13621277564 | $771.11 | Avslutad | Shop at ECS Tuning | |||
| 01 | Air-flow sensor | 1 | 09/1981 | 13621466347 | $699.00 | Shop at ECS Tuning | ||||
| 01 | Air-flow sensor | 1 | 09/1981 | 13621466347 | $699.00 | Shop at ECS Tuning | ||||
| 02 | Kåpa | 1 | 09/1981 | 13621363874 | $7.12 | Avslutad | Shop at ECS Tuning | |||
| 02 | Kåpa | 1 | 09/1981 | 13621363874 | $7.12 | Avslutad | Shop at ECS Tuning | |||
| 03 | Slangklaemma | L77-84 | 1 | 09/1981 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| 03 | Slangklaemma | L77-84 | 1 | 09/1981 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| 04 | Vinkel | 1 | 09/1981 | 13541272473 | $1.43 | Shop at ECS Tuning | ||||
| 04 | Vinkel | 1 | 09/1981 | 13541272473 | $1.43 | Shop at ECS Tuning | ||||
| 05 | Veckad bälg | 1 | 09/1981 | 13541272472 | $17.86 | Shop at ECS Tuning | ||||
| 05 | Veckad bälg | 1 | 09/1981 | 13541272472 | $17.86 | Shop at ECS Tuning | ||||
| 06 | Slangklaemma | L77-84 | 1 | 09/1981 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| 06 | Slangklaemma | L77-84 | 1 | 09/1981 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| 07 | Slangklaemma | L83-90 | 1 | 09/1981 | 07129952133 | $1.78 | Shop at ECS Tuning | |||
| 07 | Slangklaemma | L83-90 | 1 | 09/1981 | 07129952133 | $1.78 | Shop at ECS Tuning | |||
| 08 | Slang | 1 | 09/1981 | 13711261370 | $29.23 | Shop at ECS Tuning | ||||
| 08 | Slang | 1 | 09/1981 | 13711261370 | $29.23 | Shop at ECS Tuning | ||||
| 09 | Slangklaemma | L71-78 | 1 | 09/1981 | 07129952129 | $1.48 | Shop at ECS Tuning | |||
| 09 | Slangklaemma | L71-78 | 1 | 09/1981 | 07129952129 | $1.48 | Shop at ECS Tuning | |||
| 10 | Ventil foer cirkulationsluft | 1 | 09/1981 | 13411286688 | $387.41 | Avslutad | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| 10 | Ventil foer cirkulationsluft | 1 | 09/1981 | 13411286688 | $387.41 | Avslutad | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | Styrdon tomgaagsreglering | 1 | 09/1981 | 13411286134 | $365.53 | Avslutad | Shop at ECS Tuning | |||
| -- | Styrdon tomgaagsreglering | 1 | 09/1981 | 13411286134 | $365.53 | Avslutad | Shop at ECS Tuning | |||
| 11 | Roerklaemma | 1 | 09/1981 | 11601276825 | $0.77 | Avslutad | Shop at ECS Tuning | |||
| 11 | Roerklaemma | 1 | 09/1981 | 11601276825 | $0.77 | Avslutad | Shop at ECS Tuning | |||
| 13 | Fjäderbricka svart | B6-ZN | 1 | 09/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 13 | Fjäderbricka svart | B6-ZN | 1 | 09/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 13 | Underlagsplaata | 5.3-140 HV-ZNS | 1 | 09/1981 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 13 | Underlagsplaata | 5.3-140 HV-ZNS | 1 | 09/1981 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 13 | Fjäderbricka | B6-ZNS3 | 1 | 09/1981 | 07119904496 | $1.78 | Avslutad | Shop at ECS Tuning | ||
| 13 | Fjäderbricka | B6-ZNS3 | 1 | 09/1981 | 07119904496 | $1.78 | Avslutad | Shop at ECS Tuning | ||
| 14 | Gummilager | 1 | 09/1981 | 11631278562 | $17.25 | Shop at ECS Tuning | ||||
| 14 | Gummilager | 1 | 09/1981 | 11631278562 | $17.25 | Shop at ECS Tuning | ||||
| 15 | Slang | 1 | 09/1981 | 11631276820 | $10.83 | Avslutad | Shop at ECS Tuning | |||
| 15 | Slang | 1 | 09/1981 | 11631276820 | $10.83 | Avslutad | Shop at ECS Tuning | |||
| 17 | Slang | 1 | 09/1981 | 11631277928 | $14.55 | Shop at ECS Tuning | ||||
| 17 | Slang | 1 | 09/1981 | 11631277928 | $14.55 | Shop at ECS Tuning | ||||
| 18 | Reducerstycke | 7,5/5 | 1 | 09/1981 | 11741264787 | $1.05 | Shop at ECS Tuning | |||
| 18 | Reducerstycke | 7,5/5 | 1 | 09/1981 | 11741264787 | $1.05 | Shop at ECS Tuning | |||
| 19 | Bränsleslang | 6X11MM | X | 09/1981 | 13311272750 | $11.62 | Shop at ECS Tuning | |||
| 19 | Bränsleslang | 6X11MM | X | 09/1981 | 13311272750 | $11.62 | Shop at ECS Tuning | |||
Notering
- Avslutad = delen tillverkas inte längre.
