Insugningsljuddämpare / Filterinsats for BMW 5 Series E28 535i (1987)

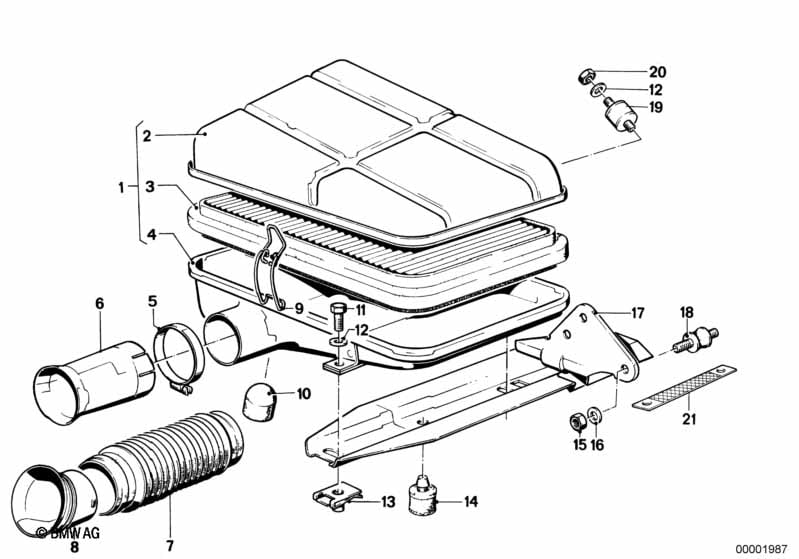

This Insugningsljuddämpare / Filterinsats technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Insugningsljuddämpare | 1 | 13711271270 | $110.76 | Avslutad | Shop at ECS Tuning | ||||
| För fordon med Landutförande schweiz eller Landsutförande Australien |
L804A=Ja L810A=Ja |
|||||||||
| 01 | Insugningsljuddämpare | 1 | 13711268876 | $183.02 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Luftfilterinsats | 1 | 13721278138 | Shop at ECS Tuning | ||||||
| 03 | Luftfilterinsats | 1 | 13721278138 | Shop at ECS Tuning | ||||||
| 07 | Insugningsroer | 1 | 02/1983 | 13711287327 | $4.36 | Shop at ECS Tuning | ||||
| 08 | Snorkel | 1 | 02/1983 | 13711287326 | $4.39 | Shop at ECS Tuning | ||||
| 09 | Taksbygel | 4 | 13711259758 | $1.52 | Shop at ECS Tuning | |||||
| 10 | Gummibuffert | 1 | 13717539903 | $6.32 | Shop at ECS Tuning | |||||
| 11 | Sexkantskruv | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Underlagsplaata | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Mutterhaallare | M6 | 2 | 13711271190 | Avslutad | Shop at ECS Tuning | ||||
| 14 | Buffert | 2 | 13711263819 | $2.08 | Shop at ECS Tuning | |||||
| 15 | Sexkantmutter | M8-8-ZNS3 | 3 | 05/1988 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 15 | Sexkantmutter | M8-8-ZNNIV SI | 3 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 16 | Underlagsplaata | 8,4X16X1,6-ZNNV | 6 | 07119907030 | Shop at ECS Tuning | |||||
| 17 | Hållare | 1 | 13711276747 | Avslutad | Shop at ECS Tuning | |||||
| 18 | Gummilager | 3 | 13711272495 | $6.29 | Shop at ECS Tuning | |||||
| 19 | Gummilager | 2 | 13711259818 | $6.98 | Shop at ECS Tuning | |||||
| 20 | Sexkantmutter | M6-8-ZNNIV SI | X | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 21 | Jordningsband | 1 | 12521710502 | $2.73 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
