Luftmängdmeter for BMW 3 Series E36 318ti (1994)

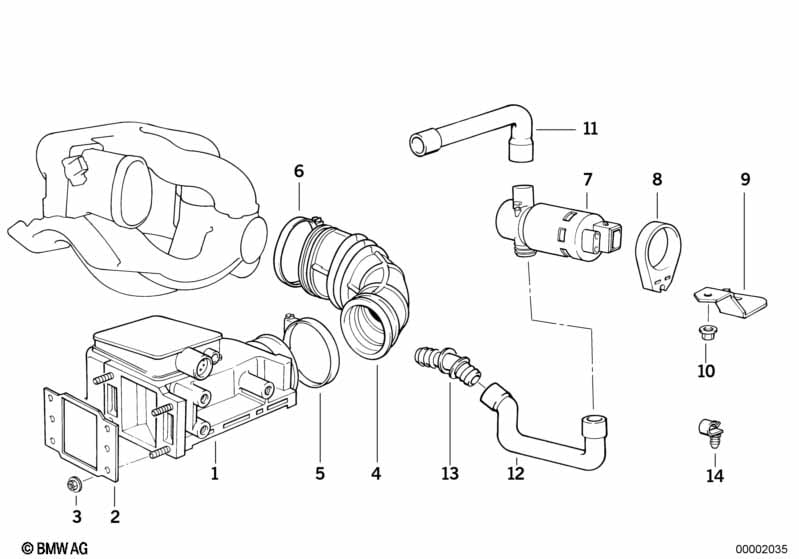

This Luftmängdmeter technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med utan katalysator och Katalysator |
S199A=Nej =Ja |
|||||||||
| 01 | Luftmassemätare med adapterkabel | 1 | 13627558785 | $580.29 | Shop at ECS Tuning | |||||
| 02 | Taetningsram | 1 | 13711705064 | $0.70 | Shop at ECS Tuning | |||||
| 03 | Sexkantmutter självlasning | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Slangklaemma | L71-78 | 1 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 06 | Slangklaemma | L89-96 | 1 | 07129952135 | $2.18 | Shop at ECS Tuning | ||||
| 09 | Haallare tomgangsjustering | 1 | 13411734521 | $2.43 | Shop at ECS Tuning | |||||
| 10 | Sexkantmutter med plaata | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Vinkel | 1 | 13411722944 | $0.53 | Shop at ECS Tuning | |||||
| 14 | Ledning hållare | D8 | 1 | 12531721040 | $0.50 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti Luftmängdmeter?
- This technical diagram illustrates the Luftmängdmeter within the Braensleanrikning group for the 3 Series E36 318ti produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Luftmassemätare med adapterkabel (Part #13627558785).
- Which models use the hardware listed in this Luftmängdmeter?
- The hardware and components featured in the Luftmängdmeter are specific to the 3 Series E36 318ti produced during 1994. These technical specifications ensure that parts like the Luftmassemätare med adapterkabel (13627558785) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Luftmängdmeter assembly?
- Each item in the Luftmängdmeter corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the Luftmassemätare med adapterkabel by locating its position on the schematic, which then links to the official BMW part number 13627558785 for the Braensleanrikning section.
