Tomgaangsregleringsventil for BMW 3 Series E36 M3 (1996)

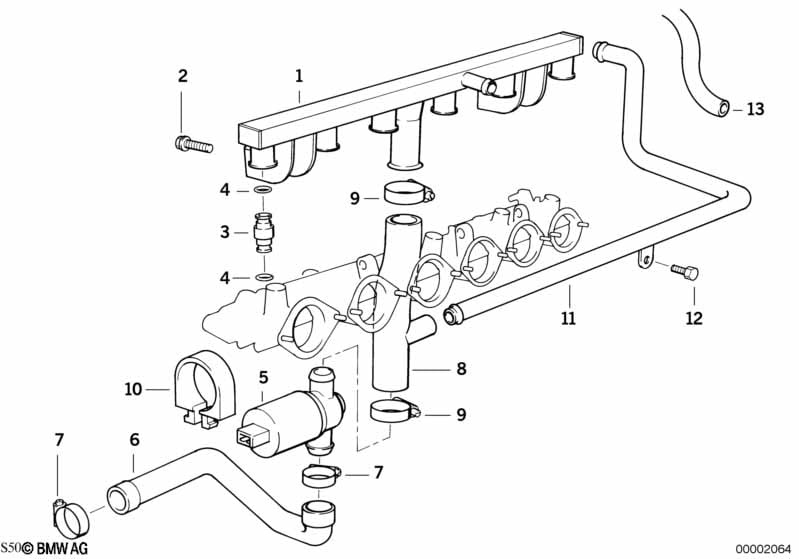

This Tomgaangsregleringsventil technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Luftledning | 1 | 13411404126 | $171.75 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 02 | Sexkantskruv med bricka | M6X28-Z1 | 2 | 07119913975 | $0.24 | Shop at ECS Tuning | ||||
| 03 | Foerbindelseroer | 6 | 13411404129 | $4.30 | Shop at ECS Tuning | |||||
| 04 | O-ring | X | 13411404130 | $1.88 | Shop at ECS Tuning | |||||
| 05 | Tomgaangsregleringsventil anslutning t | 1 | 13411733090 | $335.12 | Shop at ECS Tuning | |||||
| 06 | Slang | 1 | 13411401660 | $10.33 | Shop at ECS Tuning | |||||
| 07 | Slangklaemma | L28-33 | 2 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Slang | 1 | 13411403013 | $13.58 | Shop at ECS Tuning | |||||
| 09 | Slangklaemma | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Gummilager | D=46MM | 1 | 13411736144 | $4.38 | Shop at ECS Tuning | ||||
| 11 | Ledning | 1 | 09/1996 | 13901405763 | $7.50 | Shop at ECS Tuning | ||||
| 13 | Slangkrök | 1 | 13901405161 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Tomgaangsregleringsventil?
- This technical diagram illustrates the Tomgaangsregleringsventil within the Braensleanrikning group for the 3 Series E36 M3 produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Luftledning (Part #13411404126).
- Which models use the hardware listed in this Tomgaangsregleringsventil?
- The hardware and components featured in the Tomgaangsregleringsventil are specific to the 3 Series E36 M3 produced during 1996. These technical specifications ensure that parts like the Luftledning (13411404126) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tomgaangsregleringsventil assembly?
- Each item in the Tomgaangsregleringsventil corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Luftledning by locating its position on the schematic, which then links to the official BMW part number 13411404126 for the Braensleanrikning section.
