Foergasare monteringsdetaljer for BMW 1502-2002tii 1602 (1973)

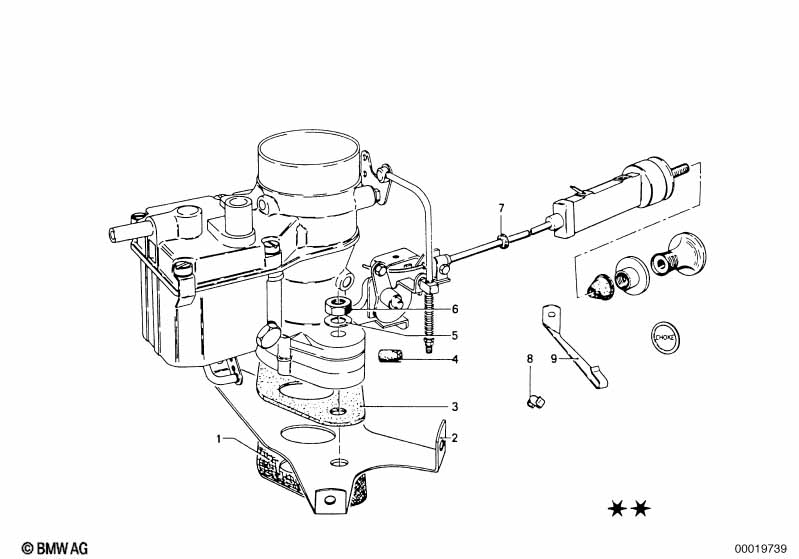

This Foergasare monteringsdetaljer technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi | |||||||||
| 01 | Packning asbestfri | 3 | 03/1966 | 07/1977 | 13119065692 | $3.00 | Shop at ECS Tuning | |||
| 02 | Hållare luftfilter | 1 | 13720739035 | Avslutad | Shop at ECS Tuning | |||||
| 04 | Kåpa | D=3,5MM | 1 | 11611437560 | $3.39 | Shop at ECS Tuning | ||||
| 05 | Fjäderbricka | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Sexkantmutter med fläns | M8 | 2 | 11611713432 | $0.43 | Avslutad | Shop at ECS Tuning | |||
| 07 | Gummihylsa | M | 1 | 13112088552 | $3.52 | Shop at ECS Tuning | ||||
| 07 | Bussning | 10,5MM | 1 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 08 | Ledningsclip | 1 | 18307565082 | $0.38 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
