Insprutningsanlaeggn./insprutningsventil for BMW 2500-3.3Li 3.3Li

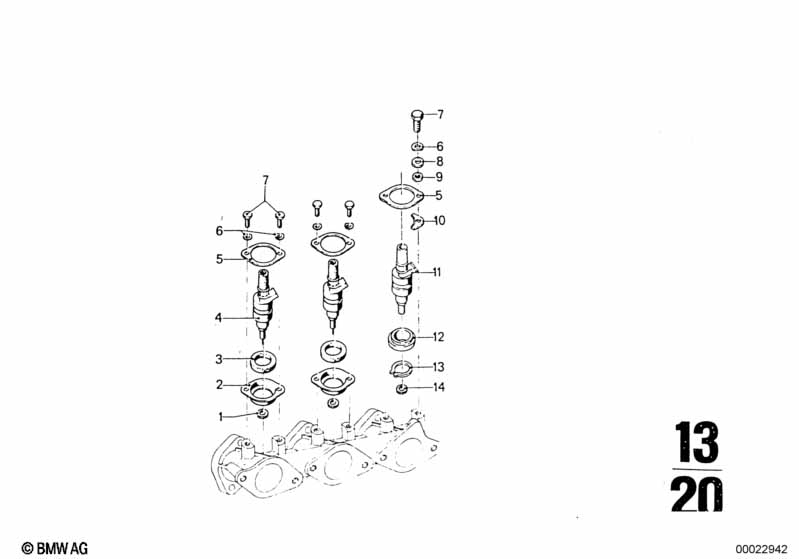

This Insprutningsanlaeggn./insprutningsventil technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Vinkelplatta | 6 | 13641256446 | $3.42 | Shop at ECS Tuning | |||||
| 06 | Fjäderbricka | B6 | 12 | 07119932072 | $0.09 | Avslutad | Shop at ECS Tuning | |||
| 07 | Sexkantskruv | M6X16-8.8-ZNS3 | 12 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Underlagsplaata | A6,4-ZNNIV SI | 12 | 09/1973 | 02/1977 | 07119904202 | Shop at ECS Tuning | |||
| 09 | Isolerbricka | 12 | 09/1973 | 02/1977 | 13641262255 | $0.28 | Shop at ECS Tuning | |||
| 10 | Isolerstycke | 12 | 09/1973 | 02/1977 | 13641261803 | $0.92 | Shop at ECS Tuning | |||
| 11 | Insprutningsventil | 6 | 09/1973 | 02/1977 | 13641363918 | $169.37 | Avslutad | Shop at ECS Tuning | ||
| 12 | Gummiring | 6 | 09/1973 | 02/1977 | 13641261731 | $2.09 | Shop at ECS Tuning | |||
| 13 | Laasring | 22X1,2 | 6 | 09/1973 | 02/1977 | 07119934151 | Avslutad | Shop at ECS Tuning | ||
| 14 | Gummiring | 6 | 09/1973 | 02/1977 | 13641358349 | $3.41 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
