Bränsleledning for BMW 3 Series E46 318i (2001)

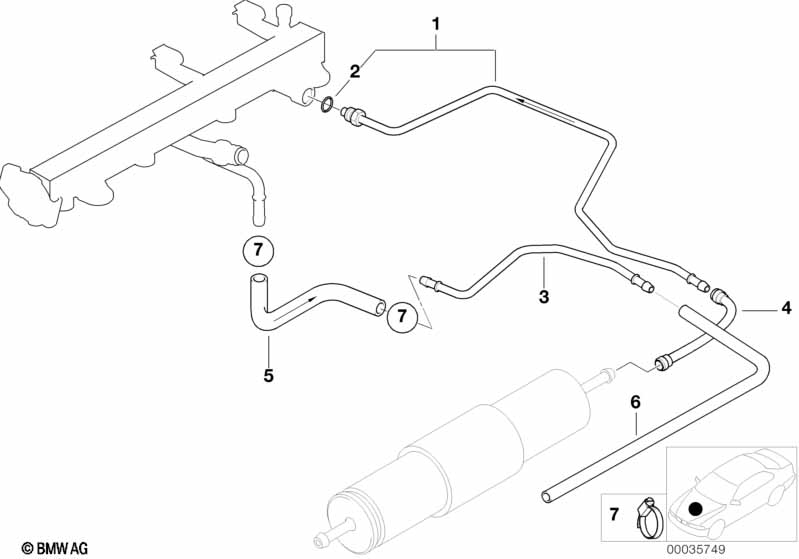

This Bränsleledning technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.

Bränsleledning
Nr. Beskrivning Tillägg antal  Från   Upp till  Reservdelsnummer Pris Notering
01 Bränsletilloppsledning 1 13531433943 Shop at ECS Tuning
02 O-ring 1 13531247953 $1.25 Shop at ECS Tuning
03 Bränslereturledning 1 13531433944 Shop at ECS Tuning
04 Bränsleslang 1 13317513482 $45.38 Shop at ECS Tuning
05 Bränsleslang 8X13MMX1000 X 13537563456 $44.77 Shop at ECS Tuning
06 Bränsleslang 1 13317513482 $45.38 Shop at ECS Tuning
07 Slangklaemma L12-15 2 07129952104 $1.18 Shop at ECS Tuning
