Stuts för strypspjäll for BMW 5 Series E60 525i (2005)

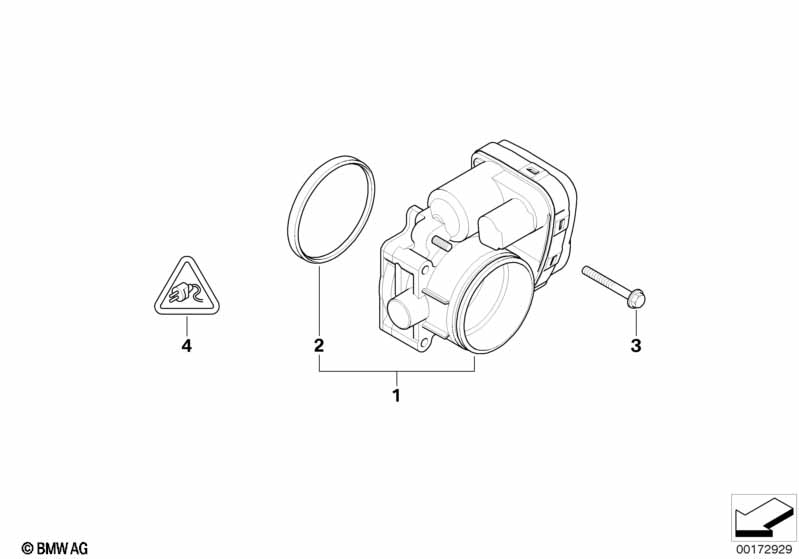

This Stuts för strypspjäll technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stuts för strypspjäll | 1 | 13547502444 | $362.72 | Shop at ECS Tuning | |||||
| 02 | Kontur-packning | D=75,5MM | 1 | 13547504728 | $9.02 | Shop at ECS Tuning | ||||
| 03 | Sexkantskruv med bricka | M6X50-ZNNIV SI | 4 | 07119905377 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Sexkantskruv med bricka | M6X50-ZNNIV SI | 4 | 07119905377 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Universalhylskontakthus MLK, okodat | 6 POL. /MLK 1.2 | 1 | 12527505669 | $5.73 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Honkontakt MLK 1,2 ELA med kabel | 0,35-0,5MM² AG | 6 | 61130070572 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i Stuts för strypspjäll?
- This technical diagram illustrates the Stuts för strypspjäll within the Braensleanrikning group for the 5 Series E60 525i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Stuts för strypspjäll (Part #13547502444).
- Which models use the hardware listed in this Stuts för strypspjäll?
- The hardware and components featured in the Stuts för strypspjäll are specific to the 5 Series E60 525i produced during 2005. These technical specifications ensure that parts like the Stuts för strypspjäll (13547502444) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stuts för strypspjäll assembly?
- Each item in the Stuts för strypspjäll corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the Stuts för strypspjäll by locating its position on the schematic, which then links to the official BMW part number 13547502444 for the Braensleanrikning section.
