Tanklueftingventil/stoerluftventil for BMW 7 Series E32 730i (1994)

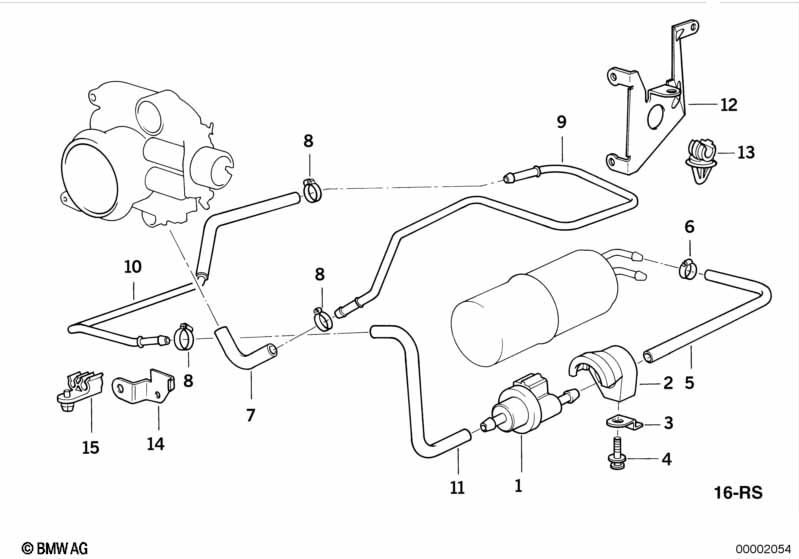

This Tanklueftingventil/stoerluftventil technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tanklueftingventil | BOSCH | 1 | 13901711395 | $155.67 | Shop at ECS Tuning | ||||
| 02 | Hållare luftningsventil | 1 | 13901717292 | $3.75 | Shop at ECS Tuning | |||||
| 05 | Bränsleslang | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 06 | Slangklaemma | L=9-12 | 2 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Slangklaemma | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Slangklaemma | D=11,5MM | 2 | 16131178918 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Slang med skurskydd | AKF | 1 | 13901747863 | $24.03 | Shop at ECS Tuning | ||||
| 08 | Slangklaemma | L12-15 | 6 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Ventilationsledning | AKF | 1 | 13901747926 | $24.87 | Shop at ECS Tuning | ||||
| 10 | Ventilationsledning | AKF | 1 | 13901747969 | $60.10 | Shop at ECS Tuning | ||||
| 11 | Slang med skurskydd | 6X11X750MM | X | 13901702841 | $25.28 | Avslutad | Shop at ECS Tuning | |||
| 11 | Bränsleslang | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Skyddslang | X | 12141306988 | $9.25 | Avslutad | Shop at ECS Tuning | ||||
| 12 | Vinkelstoed | AKF | 1 | 01/1994 | 13711747970 | $2.09 | Avslutad | Shop at ECS Tuning | ||
| 13 | Clip | D=8MM | 2 | 13311738201 | $0.62 | Shop at ECS Tuning | ||||
| 14 | Vinkelstoed | AKF | 1 | 13901747971 | $3.10 | Shop at ECS Tuning | ||||
| 15 | Clip | AKF | 1 | 16131181031 | $1.62 | Shop at ECS Tuning | ||||
| För fordon med Landutförande Tyskland |
V014A=Ja |
|||||||||
| 16 | Stoerluftventil | D=2,4MM | 1 | 12/1993 | 11641247678 | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
